Creating an ISUP Interface
Applies to: Tmedia 3.0, 3.2, 3.3
The ISUP interface creates a binding within the ISUP layer of a particular variant, a specific network, and an OPC/DPC pair to which circuits can be assigned. It contains the circuit identifier codes (CICs) within the ISUP user part. One interface is created for each similar grouping of CICs within one user part protocol variant.
After you have created an ISUP user part, you must create one or more ISUP interfaces.
To create an ISUP interface:
1- Click ISUP in the navigation panel.

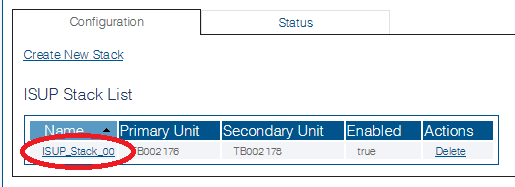

2- Select the ISUP stack

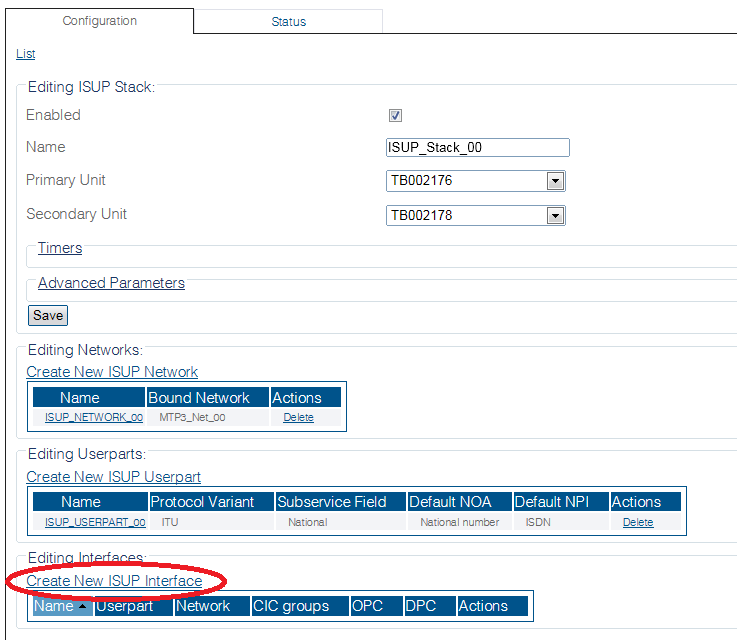

3- Click Create New Isup Interface in the ISUP stack configuration window

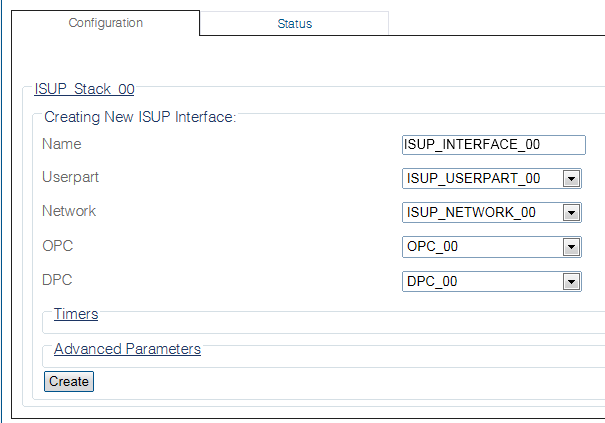

4- Configure the new ISUP interface:
Enter a name for the interface
Select an ISUP user part
Select an ISUP network
Select a trunk type
Select an originating point code (OPC)
Select a destination point code (DPC)
Click Create
5- Verify that the "IsupInterface was successfully created" message appears
