Creating a NAP (ISUP)
Applies to: Tmedia 3.0, 3.2, 3.3
A Network Access Point (NAP) represents the entry point to another network or destination peer.
After you create an ISUP CIC group, you must create a network access point.
To create a network access point (NAP):
1- Click NAPs in the navigation panel

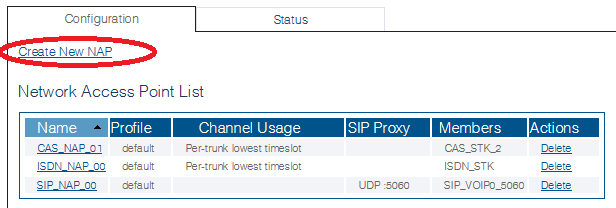

2- Click Create New NAP
3- Configure the new NAP:
Enter a name for the NAP
Select a user-created profile, if not, select default
Click Create
4- Verify that the NAP was successfully created message appears
5- Associate an ISUP interface with the NAP:
Select an interface (the newly-created ISUP CIC group)
Click the "<<" button to add the interface to the list

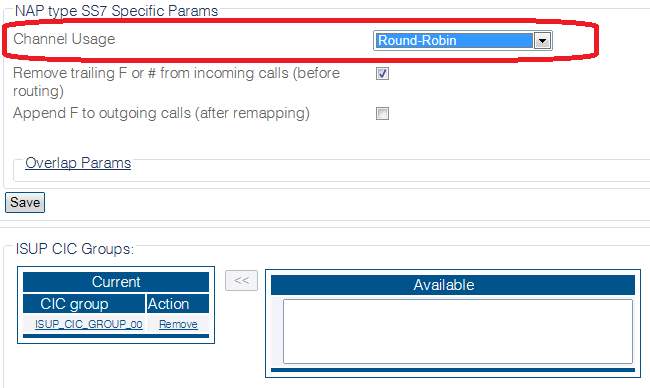

The following information is displayed:
Select a value for Channel Usage, to avoid call collision
Click Save
6- Verify that the "NAP was successfully updated" message appears
