Modifying SIP Profile Settings

Applies to: Tmedia 3.0, 3.2; SBC 3.0, 3.1

To configure SIP settings, do the following:

1- Click SIP in the Editing Profile window, to display the customizable options.

ProfilesVoipSip A 0

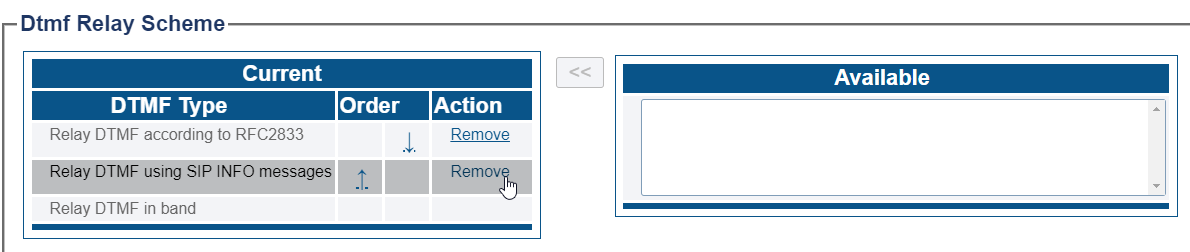

2- Select one or more DTMF-Relay relay schemes. By default they are in this order:

Profiles dtmf relay scheme

• You can change this by selecting Remove or << button to add them again You can get more details here: DTMF-Relay

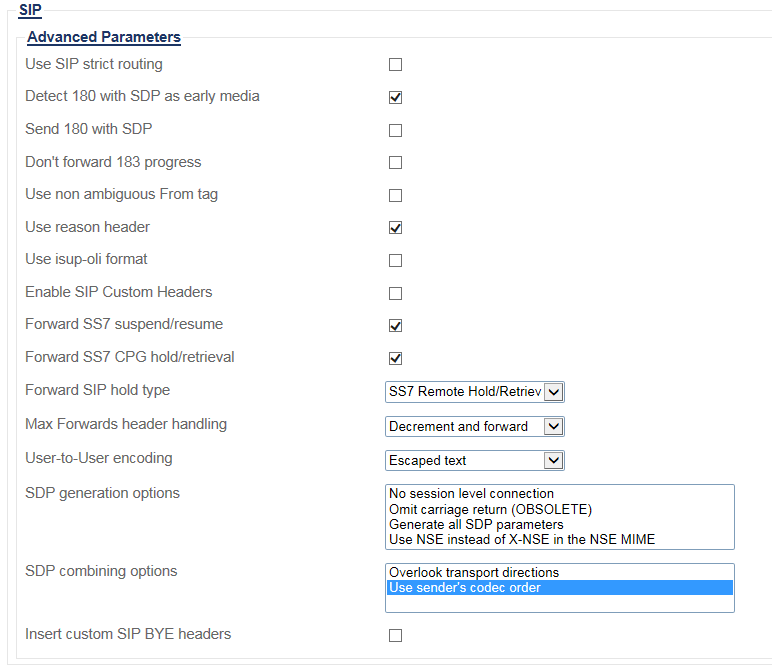

3- Modify Advanced settings as required.

• Then click Save

ProfilesVoipSip 1 A

List of Parameters

SIP

• Use SIP strict routing

• Detect 180 with SDP as early media

• Send 180 with SDP

• Don't forward 183 progress

• Use non ambiguous From tag

• Use reason header

• Use isup-oli format

• Enable SIP Custom Headers

• Forward SS7 suspend/resume

• Forward SS7 CPG hold/retrieval

• Forward SIP hold type

• Max Forwards header handling

• User-to-User encoding

• SDP generation options

• SDP combining options

• Insert custom SIP BYE headers
