Creating a SIP Register Filtering Rule

Applies to: SBC 3.1, 3.3

To configure a SIP Register Filtering Rule (Inbound or Outbound), do the following:

1- Click SIP Register Filtering in the navigation panel

SIP Register Filtering NavigationMenu

2- Click Create New SIP Register Filtering Inbound Rule or Create New SIP Register Filtering Outbound Rule

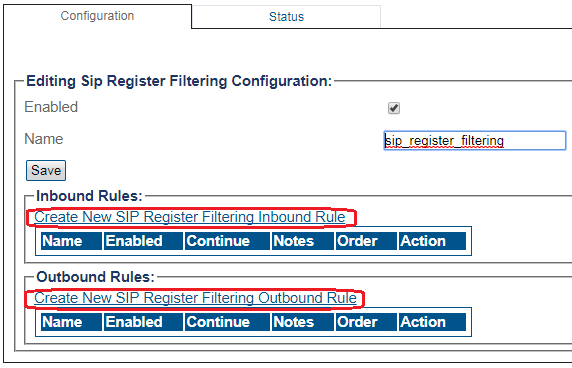

Create SIP Register Filtering Rule

3- Create the new SIP Register Filtering Rule:

• Select Enabled to make this rule active.

• Select Continue to indicate whether to check next rule if current rule conditions match and action isn't final (i.e. not REJECT, nor DROP action).

• Select Conditions Operator between rule conditions. If all conditions must match then select AND operator. If a single condition match is required then select OR operator.

• Enter a Name for this SIP Register Filtering Rule.

• Optionally, it is possible to enter a rule description. The description is ignored by the system.

• Click Create

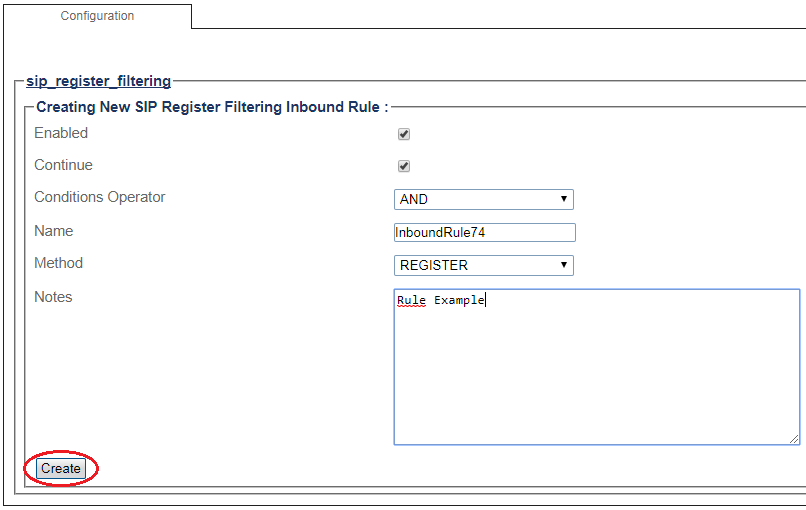

Create SIP Register Filtering Rule1

4- Verify that the Sip register filtering inbound rule was successfully created. or Sip register filtering outbound rule was successfully created. message appears

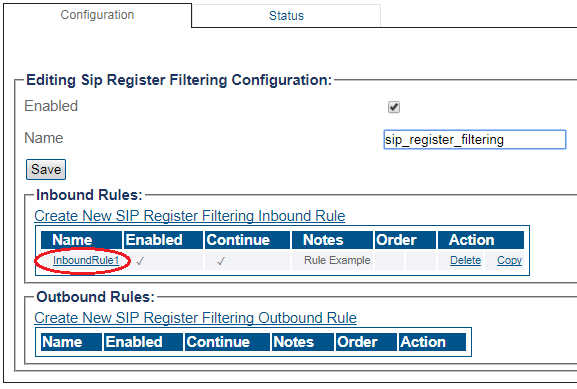

Create SIP Register Filtering Rule2

Create SIP Register Filtering Rule3
