Configure a SIP Network Access Point (NAP) with a local FQDN

Applies to: Tmedia 3.1, 3.2

It is required to enable a Local NAT Traversal in order to set a local FQDN in Via, Contact and Call-ID headers. This Local NAT Traversal needs being associate to the NAP which requires a public FQDN in place of an IP address in the specified headers.

To enable Local NAT Traversal:

1- Select NATs from the navigation panel.

EnableLocalNatTraversal 0

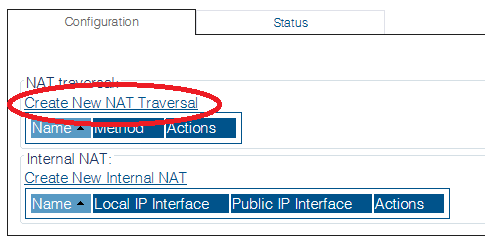

2- Click Create New NAT Traversal

EnableLocalNatTraversal 1

3- Enter a meaningful name.

• Choose 'Force public IP' Method.

• Provide local 'FQDN' in the 'Public IP address or FQDN' field.

• Click Create

EnableLocalNatTraversalWithFqdn 2

Once the NAT configuration is completed, it must be associated with a NAP.

4- Select NAPs from the navigation panel

EnableLocalNatTraversal 3

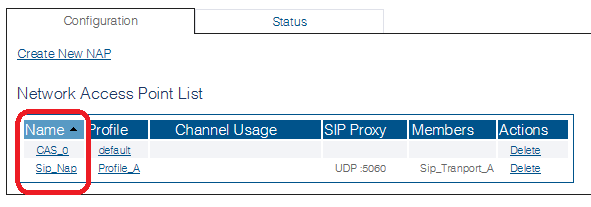

5- Select a SIP NAP from the Network Access Point list

EnableLocalNatTraversal 4

6- In the Network Address Translation section:

• Choose 'Local Method' that contains the same name as the Local NAT configuration that you provided in step #2.

• Click Save

EnableLocalNatTraversalWithFqdn 5

Related actions

Toolpack:Associate Local NAT to NAP
