Allocating a SIP Open Network Access Point (NAP)

Applies to: SBC 3.1, 3.3

You must allocate a SIP NAP for your system. To create a new NAP:

1-Click NAPs in the navigation panel

NAP NavigationMenu

2-Click Create New NAP

Create New NAP SIP

2-Create the new NAP

• Enter a name for the NAP

• Click Create

Create New NAP SIP1

3-Verify that the NAP was successfully created message appears

Create New NAP SIP2

Associate a SIP transport server with the new NAP

1-Select a SIP Transport Server from the Available list

2-Click "<<" to associate the SIP Transport Server with the NAP

Create New NAP SIP3

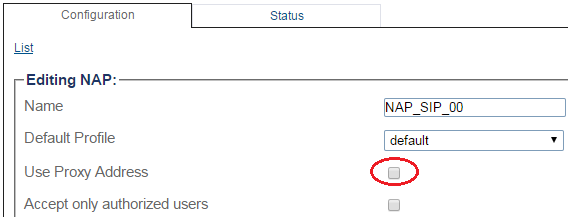

Disable proxy address

Create New NAP SIP4 NoProxy

Configure the Access Control List (ACL)

The ACL will determine which remote IP addresses will be allowed for incoming calls with this NAP.

Outgoing calls using this NAP will use the Proxy address in the NAP configuration. It will not use the IPs in the ACL.

1-Enter an IP/MASK (use 0.0.0.0/0 to accept any addresses)

2-Click "<<" to add in the list of Access Control

Create New NAP SIP5 ACL

Associate a Port range with the new NAP

1-Select a port range from the Available list

2-Click "<<" to associate the Port range with the NAP

Create New NAP SIP5

Associate a SIP Domain with the new NAP (optional)

1-Select a sip domain from the Available list

2-Click "<<" to associate the SIP Domain with the NAP

Create New NAP SIP7

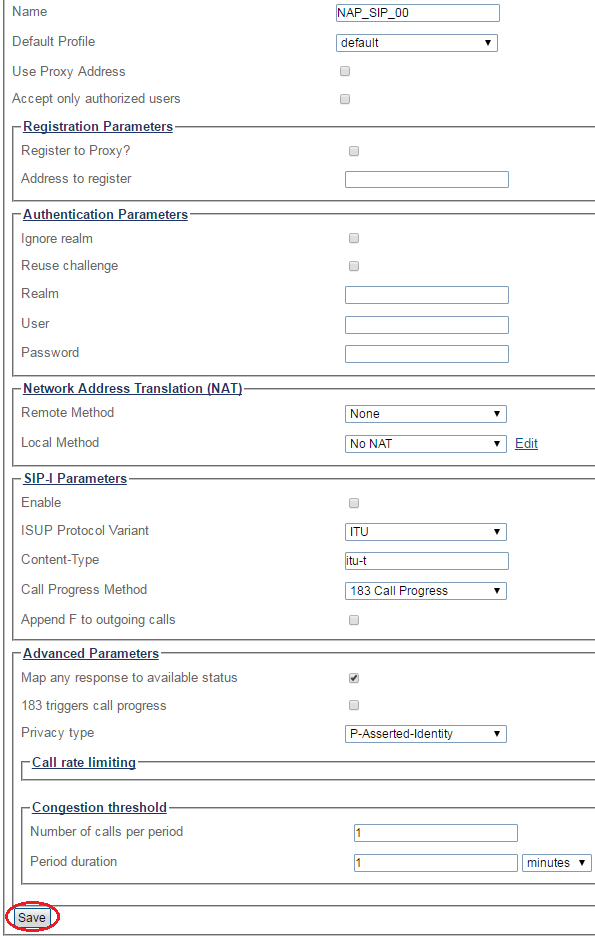

Configure settings for the following parameter groups as required

• Registration Parameters

• Authentication Parameters

• Network Address Translation

• SIP-I Parameters

• Advanced Parameters

1- Click Save

Create New NAP SIP6 NoProxy
