Creating M2UA Peers

Applies to: Tmedia 3.0, 3.2, 3.3

After you create your M2UA links, you must define M2UA peers for your system.

To create an M2UA peer:

1- Click M2UA in the navigation panel

Create M2ua 0

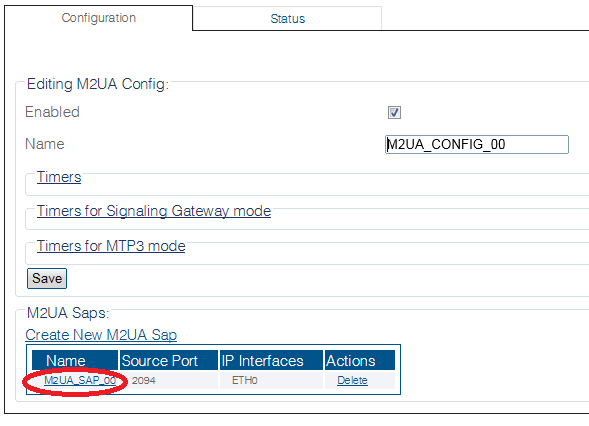

2- Select an M2UA SAP

Select M2uaSap 0

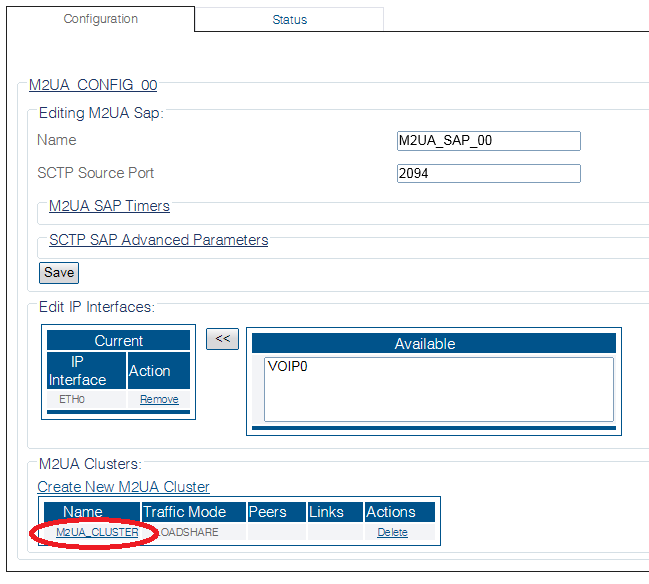

3- Select an M2UA Cluster

Select M2uaCluster 0

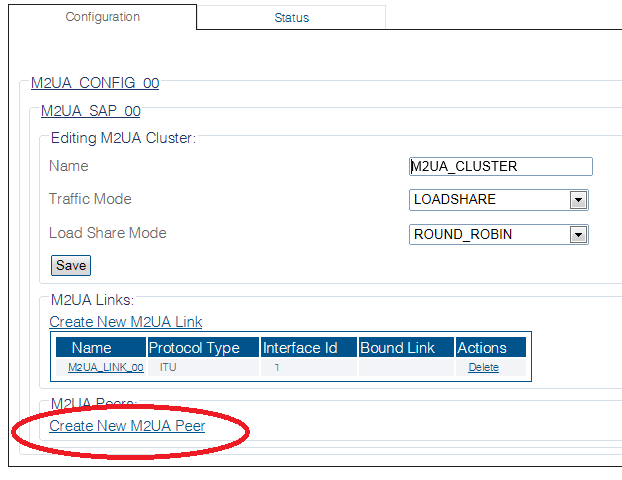

4- Click Create New M2ua Peer in the M2UA cluster configuration window:

Create M2UA Peer 0

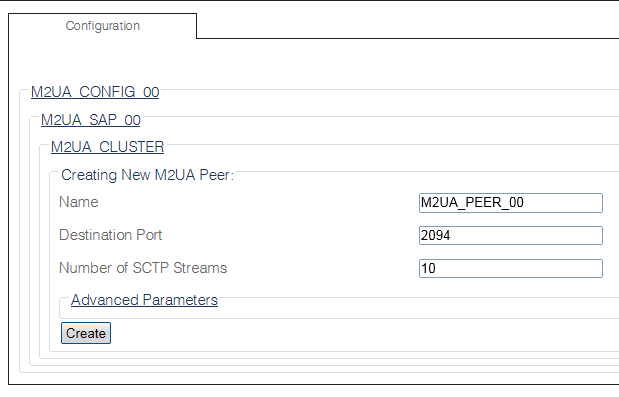

5- Configure the new M2UA peer:

  • Enter a name for the peer

  • Enter a destination port (as configured in the destination element)

  • Indicate the number of outgoing SCTP Streams

  • Click Create

Create M2UA Peer 1

6- Verify that the "M2ua Peer was successfully created" message appears

Create M2UA Peer 2

7- Enter a destination address for the peer:

  • Enter a destination address

  • Click the "<<" button to add it to the list of destination addresses

  • Verify that the (your address) was successfully added message appears

Create M2UA Peer 3

Path

Parameters (text)

Parameters (json)

List of Parameters
