Creating an M3UA User Part (SGP)

Applies to: Tmedia 3.0, 3.2, 3.3

After you create an M3UA network, you must create a new M3UA user part.

To create an M3UA user part:

1- Click M3UA in the navigation panel:

CreateM3ua 0

2- Select an M3ua Network:

SelectM3uaNetwork SGP 0

3- Click Create New M3ua Userpart in the M3UA network configuration window

Create M3UA Userpart 0 A

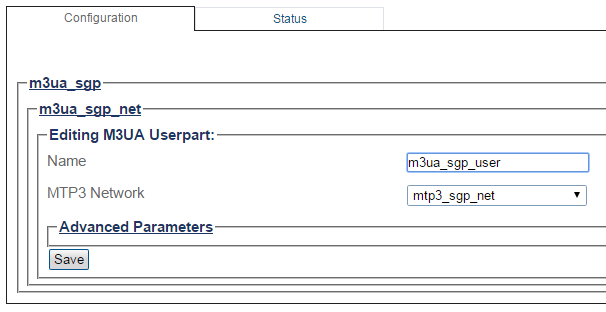

3- Configure the new M3UA user part:

  • For a system set up on a Signaling Gateway, you need to connect this entity to a MTP3 network: Select an MTP3 network

    • Note: the MTP3 network field is only shown for a SGP.

  • Click Create

Create M3UA Userpart SGP 1

4- Verify that the "M3ua Userpart was successfully created" message appears

Create M3UAUserPart 2 SGP
