Creating an M3UA User Part (IPSP)

Applies to: Tmedia 3.0, 3.2, 3.3

After you create an M3UA network, you must create a new M3UA user part.

To create an M3UA user part:

1- Click M3UA in the navigation panel:

CreateM3ua 0

2- Select an M3ua Network:

SelectM3uaNetwork A 0

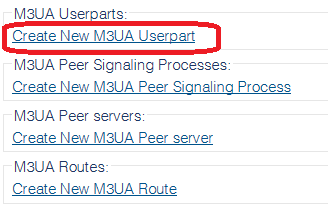

3- Click Create New M3ua Userpart in the M3UA network configuration window

Create M3UA Userpart 0 A

3- Configure the new M3UA user part:

• Enter a name for the user part

• Click Create

Create M3UA Userpart 1

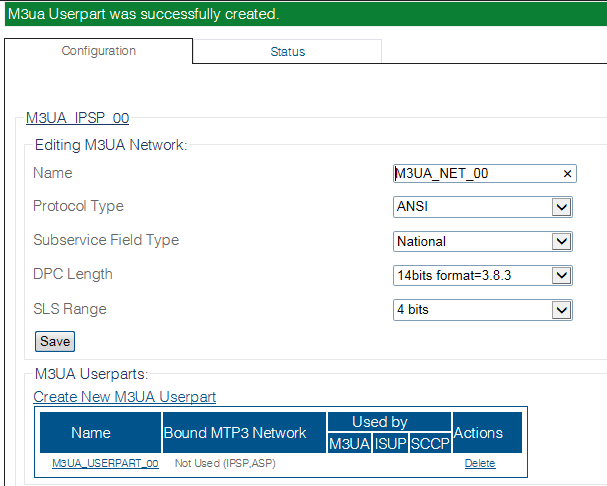

4- Verify that the "M3ua Userpart was successfully created" message appears

Create M3UA Userpart 2

Path

/configurations/@[configuration_name]/m3ua_stacks/@[m3ua_name]/m3ua_networks/@[m3ua_network]/m3ua_userparts/@[m3ua_userpart]

Parameters (text)

/configurations/@[configuration_name]/m3ua_stacks/@[m3ua_name]/m3ua_networks/@[m3ua_network]/m3ua_userparts/@[m3ua_userpart]
mtp3_network = "NONE"
name         = "@[m3ua_userpart]"
prim_timer   = "3 minutes

Parameters (json)

{
  "mtp3_network" : "NONE",
  "name" : "@[m3ua_userpart]",
  "prim_timer" : "3 minutes"
}

List of Parameters

• Name

Advanced Parameters

• MTP3 Primitive Timer
