Creating an M3UA SAP (ASP)

Applies to version(s): v2.8

Once an M3UA configuration is created, you must then create a new M3UA service access point (SAP) for your system. The SAP is an identifying label for endpoints in your network.

To create an M3UA SAP:

1- Click M3UA in the navigation panel:

CreateM3ua 0

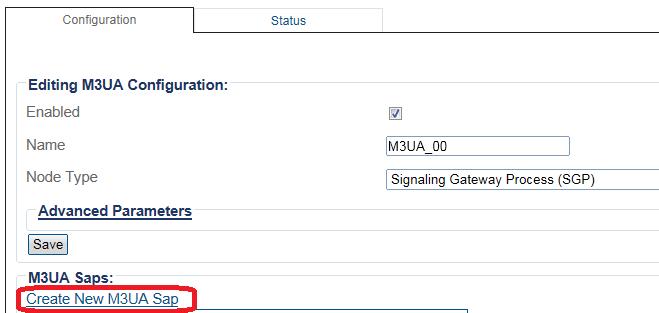

2- Click Create New M3ua Sap in the M3UA configuration panel

Create M3UA SAP 0 0

3- Configure the new SAP:

• Enter a name for the SAP

• Select an Unit to use

• Select an SCTP source port

• Click Create

Create M3UA SAP 1

4- Verify that the "M3ua Sap was successfully created" message appears

Create M3UA SAP 2

5- Associate an IP interface with the new SAP:

• Select an available IP interface

• Click the**"<<"** button to associate the interface with the SAP

Create M3UA SAP 3

List of Parameters

• Name

• SCTP Adapter

• SCTP Source Port

M3UA SAP Timers

• SCTP Primitive Timer

• SCTP Association Timer
