Creating an M3UA Route (SGP)

Applies to: Tmedia 3.0, 3.2, 3.3

Now that you have configured M3UA user parts, PSPs, and peer servers, you must create M3UA routes for your system.

You require one route for each point code in your system. This means one route for the PC (SSP and STP) and one for the source point code (OPC).

To create an M3UA route on an SGP:

1- Click M3UA in the navigation panel:

CreateM3ua 0

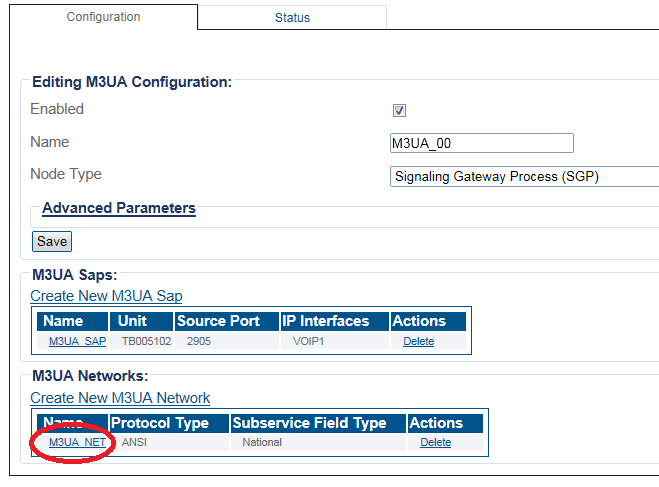

2- Select an M3ua Network:

SelectNetwork SGP 0

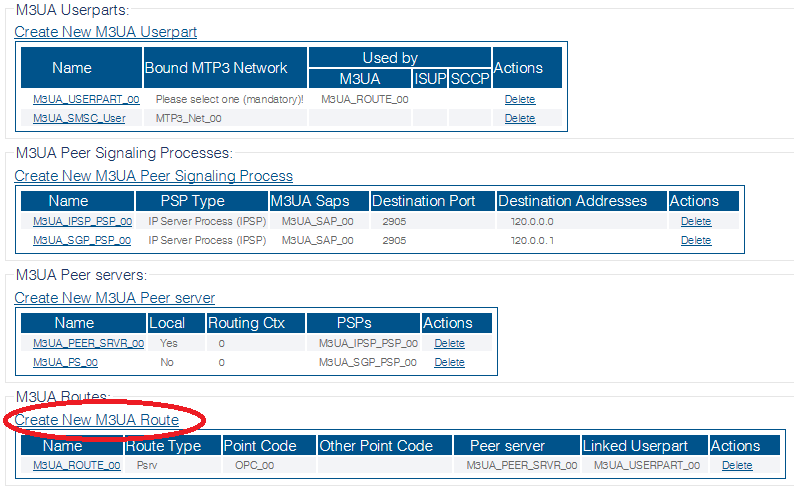

3- Click Create New M3ua Route in the M3UA network configuration window

Create M3UA Route SGP 0

2- Configure the new M3UA route:

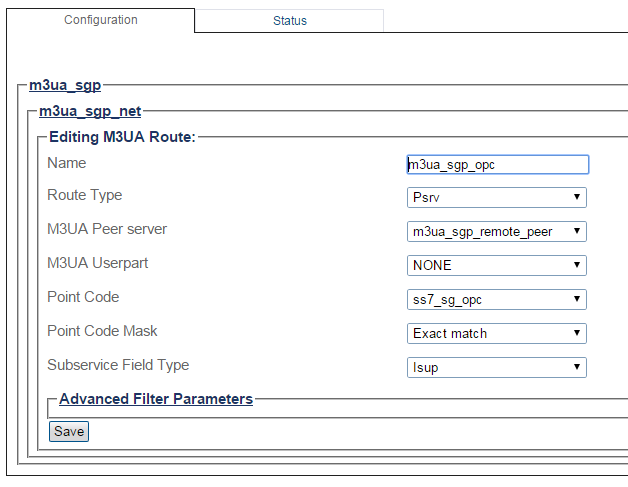

For the OPC, this route is used for the local point code and to reach the ASP.

  • Enter a name for the route

  • Select a route type:Psrv

  • Select an M3UA peer server: Select the previously configured M3UA Peer Server with the right RC (Routing Context)

  • Select an M3UA user part:NONE

  • Select a point code: Select the OPC from the MTP3 linkset

  • Select a point code mask (Recommended value: Exact match)

  • Select a sub-service field type:ISUP or SCCP

  • Click Create

Create M3UA Route SGP 1

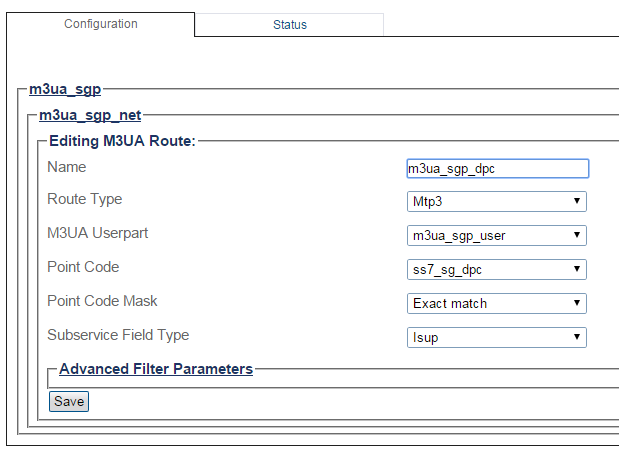

For the DPC, this route is used to reach the DPC that is used in MTP3 configuration.

  • Enter a name for the route

  • Select a route type:Mtp3

  • Select an M3UA user part: Select the previously configured M3UA User Part

  • Select a point code: Select the DPC from the MTP3 linkset

  • Select a point code mask (Recommended value: Exact match)

  • Select a sub-service field type:ISUP or SCCP

  • Click Create

Create M3UA Route SGP 2

3- Verify that the "M3ua Route was successfully created" message appears

Create M3UA Route SGP 3
