Creating an M3UA Route (IPSP)
Applies to: Tmedia 3.0, 3.2, 3.3
Once you have configured the M3UA user parts, PSPs, and peer servers, you must create M3UA routes for your system.
You require one route per point code. In other words, one route for each DPC (SSP and STP) and one for each source point code (OPC).
To create an M3UA route on an IPSP:
1- Click M3UA in the navigation panel:
2- Select an M3ua Network:

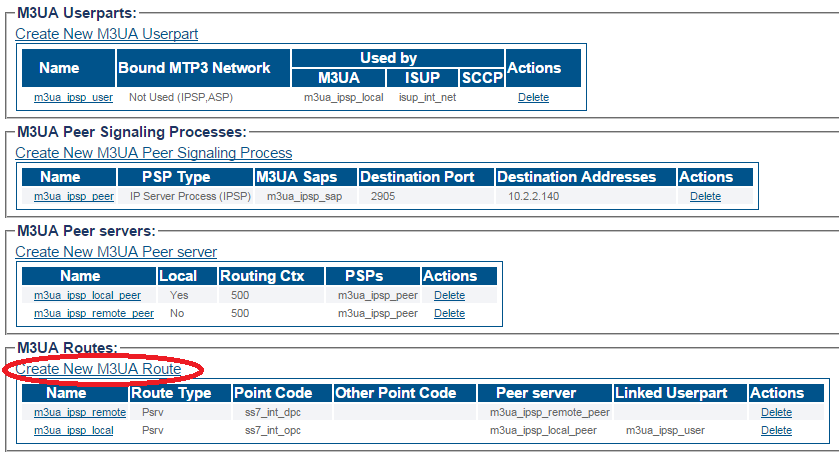

3- Click Create New M3ua Route in the M3UA network configuration window
4- Configure the new M3UA route:

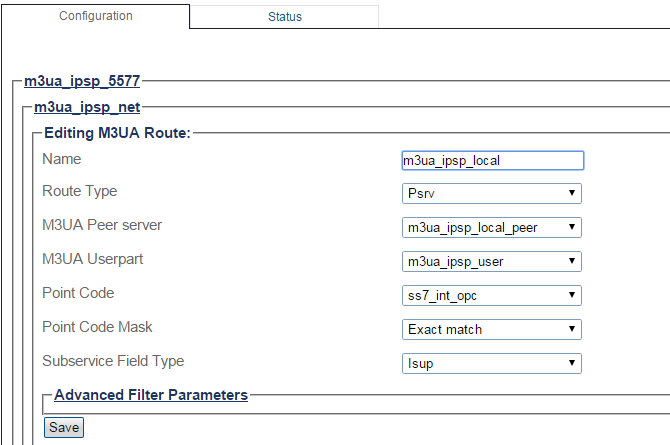

For an OPC, the route is used for the local point code and to reach the ASP.
Enter a name for the route
Select a route type:Psrv
Select an M3UA peer server: Select the previously configured M3US Peer Server with the right RC
Select an M3UA user part
Select a point code: Select the OPC from the MTP3 linkset
Select a point code mask (Recommended value: Exact match)
Select a sub-service field type:ISUP or SCCP
Click Create
For the DPC, the route is used to reach the DPC and for the MTP3 configuration.
Enter a name for the route
Select a route type:Mtp3
Select an M3UA user part: Select the previously configured M3UA User Part
Select a point code: Select the DPC from the MTP3 linkset
Select a point code mask (Recommended value: Exact match)
Select a sub-service field type:ISUP or SCCP
Click Create
5- Verify that the "M3ua Route was successfully created" message appears
Path
Parameters (text)
Parameters (json)
List of Parameters
M3UA Peer Server (only if Psrv was chosen as the route type)
