Creating an M3UA Peer Signaling Process (ASP)

Applies to: Tmedia 3.0, 3.2, 3.3

After you create an M3UA user part, you must create a new M3UA peer signaling process (PSP), which is used to describe a remote SGP that is accessible through the M3UA system.

To create an M3UA Peer Signaling Process (PSP) on ASP:

1- Click M3UA in the navigation panel:

CreateM3ua 0

2- Select an M3ua Network:

SelectNetwork SGP 0

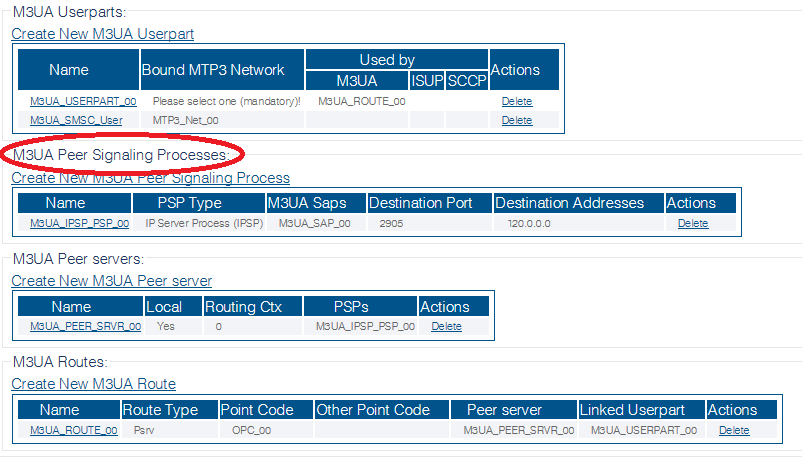

3- Click Create New M3ua Peer Signaling Process in the M3UA network configuration window:

Create M3UA PSP SGP 0

4- Configure the new M3UA PSP:

  • Enter a name for the PSP

  • Select Signaling Gateway Process (SGP) as the PSP type

  • Enter a destination port (as configured in the destination element)

  • Click Create

Create M3UA PSP SGP 1

5- Verify that the "M3ua PSP was successfully created" message appears

Create M3UA PSP SGP 2

6- Associate a SAP with the new PSP:

  • Select a SAP from the list of available SAPs

  • Click the "<<" button to associate it with the PSP

Create M3UA PSP SGP 3

7- Enter a destination address for the PSP:

  • Enter a destination address

  • Click "<<" to add the destination address to the PSP

Create M3UA PSP SGP 4

8- Verify that the "(your address) was successfully added" message appears

Create M3UA PSP SGP 5
