Creating an M3UA Network (ASP)

Applies to version(s): v2.8

Just like the M3UA SAP, the M3UA network is another important component of an M3UA configuration.

To create an M3UA network:

1- Click M3UA in the navigation panel:

CreateM3ua 0

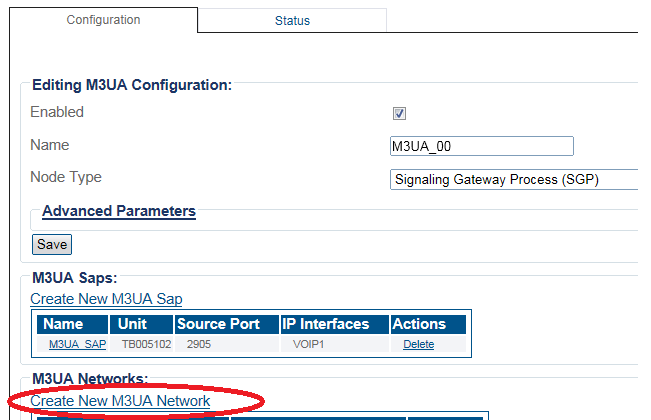

2- Click Create New M3ua Network in the M3UA configuration panel

Create M3UA Network SGP 0

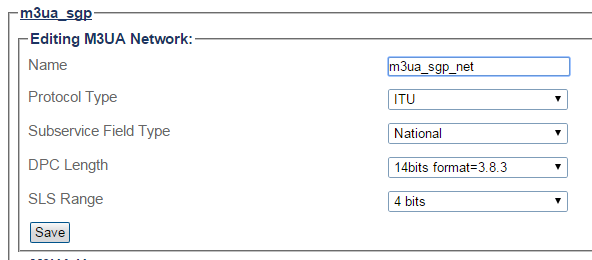

3- Configure the new M3UA network:

• Enter a name for the network

• Select a protocol type

• Select a sub-service field

• Select a DPC length

• Select an SLS range

• Click Create

Create M3UA Network SGP 1

4- Verify that the "M3ua Network was successfully created" message appears

Create M3UA Network

List of Parameters

• Name

• Protocol Type

• Sub-service Field

• DPC Length

• SLS Range
