Creating an M3UA Network

Applies to: Tmedia 3.0, 3.2, 3.3

Just like the M3UA SAP, the M3UA network is another important component of an M3UA configuration.

To create an M3UA network:

1- Click M3UA in the navigation panel:

CreateM3ua 0

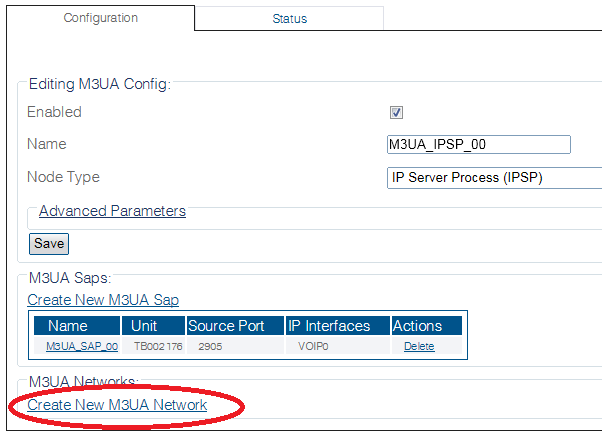

2- Click Create New M3ua Network in the M3UA configuration panel

Create M3UA Network 0

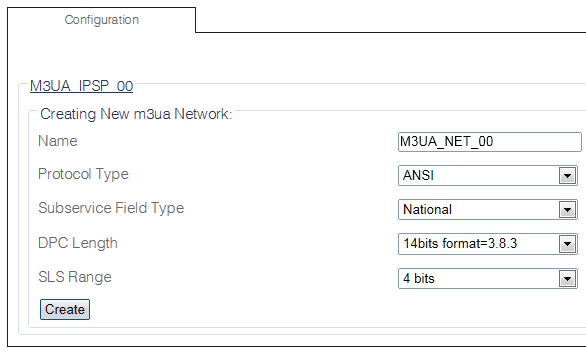

3- Configure the new M3UA network:

  • Enter a name for the network

  • Select a protocol type

  • Select a sub-service field

  • Select a DPC length

  • Select an SLS range

  • Click Create

Create M3UA Network 1

4- Verify that the "M3ua Network was successfully created" message appears

Create M3UA Network

Path

Parameters (text)

Parameters (json)

List of Parameters
