Creating an M3UA Configuration (SGP)

Applies to: Tmedia 3.0, 3.2, 3.3

To set up your M3UA system as a Signaling Gateway Process (SGP), you must first create a new M3UA configuration.

In this configuration the the SIGTRAN M3UA is an extension of the MTP3 layer. This system is typically set up between Signaling Gateway Process (SGP) and Application Server Process .

To create an M3UA SGP configuration:

1- Click M3UA in the navigation panel:

CreateM3ua 0

2- Configure the M3UA service for SGP:

• Enter a name for the configuration

• Select Signaling Gateway Process (SGP) as the node type

• Click Create

CreateM3ua SGP 1

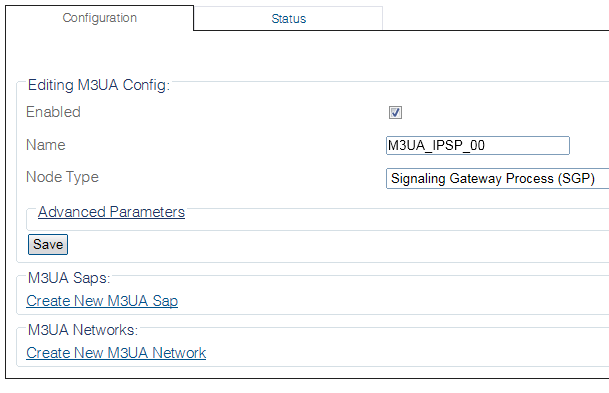

3- Verify that the "M3ua Cfg was successfully created" message appears

CreateM3ua 2

Path

/configurations/@[configuration_name]/m3ua_stacks/@[m3ua_name]

Parameters (text)

/configurations/@[configuration_name]/m3ua_stacks/@[m3ua_name]
enabled             = false
name                = "@[m3ua_name]"
node_type           = "Signaling Gateway Process (SGP)"

/configurations/@[configuration_name]/m3ua_stacks/@[m3ua_name]/advanced_parameters
as_pending_timer               = "5 seconds"
asp_down_timer                 = "2 seconds"
asp_msg_timer                  = "2 seconds"
asp_up_timer                   = "2 seconds"
cong_level_1                   = 500
cong_level_2                   = 600
cong_level_3                   = 750
daud_timer                     = "2 seconds"
destination_restrict_supported = false
drkm_nb_msg                    = 3
drkm_timer                     = "2 seconds"
duna_settle_timer              = "1 second"
heartbeat_timer                = ""
mtp3_status_timer              = "5 seconds"
only_one_hardware_unit_active  = false
restart_timer                  = "10 seconds"
seq_control_timer              = "1 second"

Parameters (json)

{
  "advanced_parameters" : {
    "as_pending_timer" : "5 seconds",
    "asp_down_timer" : "2 seconds",
    "asp_msg_timer" : "2 seconds",
    "asp_up_timer" : "2 seconds",
    "cong_level_1" : 500,
    "cong_level_2" : 600,
    "cong_level_3" : 750,
    "daud_timer" : "2 seconds",
    "destination_restrict_supported" : false,
    "drkm_nb_msg" : 3,
    "drkm_timer" : "2 seconds",
    "duna_settle_timer" : "1 second",
    "heartbeat_timer" : "",
    "mtp3_status_timer" : "5 seconds",
    "only_one_hardware_unit_active" : false,
    "restart_timer" : "10 seconds",
    "seq_control_timer" : "1 second"
  },
  "enabled" : false,
  "name" : "@[m3ua_name]",
  "node_type" : "Signaling Gateway Process (SGP)"
}

List of Parameters

• Name

• Node Type
