Creating an M2UA SAP

Applies to: Tmedia 3.0, 3.2, 3.3

After you create an M2UA configuration, you must create a new M2UA service access point (SAP) for your system. The SAP is an identifying label for endpoints in your network.

To create an M2UA SAP:

1- Click M2UA in the navigation panel

Create M2ua 0

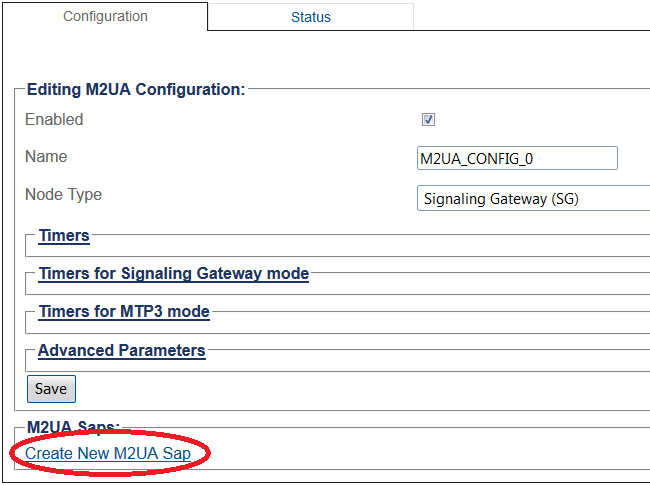

2- Click Create New M2ua Sap in the M2UA configuration window

Create M2UA SAP 0

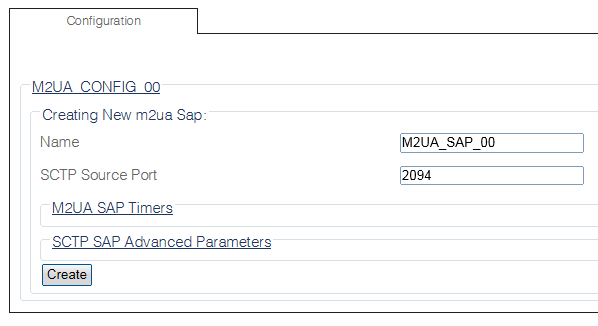

3- Configure the new M2UA SAP:

• Enter a name for the new SAP

• Enter a number for the SCTP source port

• Click Create

Create M2UA SAP 1

4- Verify that the "M2ua Sap was successfully created" message appears

Create M2UA SAP 2

5- Associate an IP interface with the new SAP:

• Select an IP interface from the list of Available IP interfaces

• Click "<<" to associate the interface with the SAP

Create M2UA SAP 3

Path

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/m2ua_stacks/@[m2ua_stack]/m2ua_saps/@[m2ua_sap]

Parameters (text)

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/m2ua_stacks/@[m2ua_stack]/m2ua_saps/@[m2ua_sap]
ip_interfaces       = [ "@[hardware_name].@[voip_name]" ]
name                = "@[m2ua_sap]"
src_port            = @[port_number]

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/m2ua_stacks/@[m2ua_stack]/m2ua_saps/@[m2ua_sap]/advanced_parameters
abort_nego_if_nb_stream_mismatch = false
bundle_timer                     = ""
cookie_life_time                 = "30 seconds"
flow_control_down_threshold      = 1000
flow_control_up_threshold        = 2000
freeze_timer                     = "1500 milliseconds"
handle_init_data                 = true
heartbeat_delay                  = "1500 milliseconds"
max_data_burst                   = 4
max_data_size                    = 1000
max_datagrams_ack                = 10
max_delay_ack                    = "100 milliseconds"
rto_init                         = "1500 milliseconds"
rto_max                          = "2 seconds"
rto_max_hearbeat                 = 1
rto_min                          = "100 milliseconds"
shutdown_guard_timer             = "75 seconds"

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/m2ua_stacks/@[m2ua_stack]/m2ua_saps/@[m2ua_sap]/timers
asso_timer     = "3 minutes"
life_time      = 200
max_prim_retry = 5
prim_timer     = "1 second"

Parameters (json)

{
  "advanced_parameters" : {
    "abort_nego_if_nb_stream_mismatch" : false,
    "bundle_timer" : "",
    "cookie_life_time" : "30 seconds",
    "flow_control_down_threshold" : 1000,
    "flow_control_up_threshold" : 2000,
    "freeze_timer" : "1500 milliseconds",
    "handle_init_data" : true,
    "heartbeat_delay" : "1500 milliseconds",
    "max_data_burst" : 4,
    "max_data_size" : 1000,
    "max_datagrams_ack" : 10,
    "max_delay_ack" : "100 milliseconds",
    "rto_init" : "1500 milliseconds",
    "rto_max" : "2 seconds",
    "rto_max_hearbeat" : 1,
    "rto_min" : "100 milliseconds",
    "shutdown_guard_timer" : "75 seconds"
  },
  "ip_interfaces" : [
    "@[hardware_name].@[voip_name]"
  ],
  "name" : "@[m2ua_sap]",
  "src_port" : @[port_number],
  "timers" : {
    "asso_timer" : "3 minutes",
    "life_time" : 200,
    "max_prim_retry" : 5,
    "prim_timer" : "1 second"
  }
}

List of Parameters

• Name

• SCTP Source Port
