Creating an M2UA Cluster

Applies to: Tmedia 3.0, 3.2, 3.3

After you create an M2UA SAP, you must create an M2UA cluster for your system.

To create an M2UA cluster:

1- Click M2UA in the navigation panel

Create M2ua 0

2- Select an M2UA SAP

Select M2uaSap 0

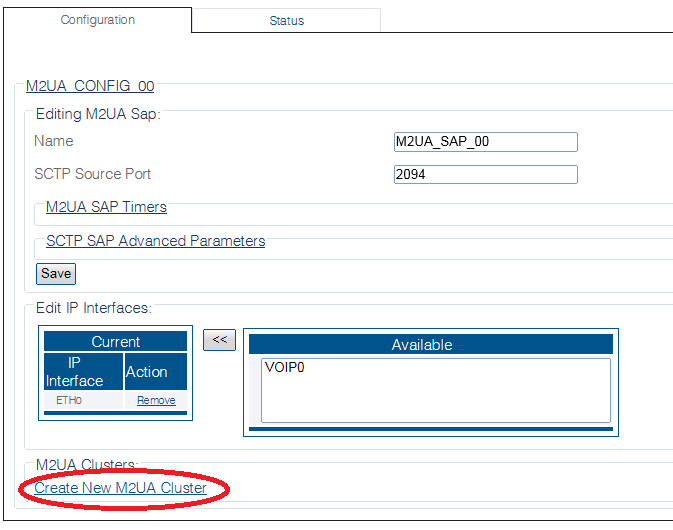

3- Click Create New M2ua Cluster in the M2UA SAP configuration window

Create M2UA Cluster 0

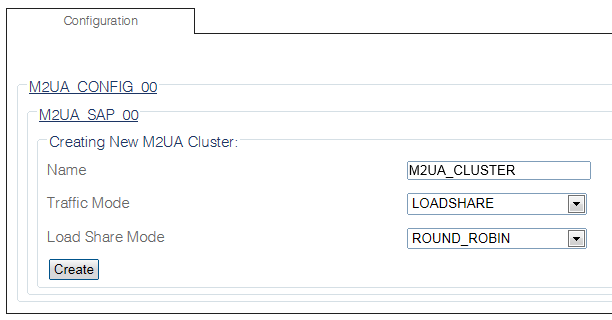

4- Configure the new M2UA cluster:

• Enter a name for the cluster

• Select a traffic mode

• Select a load share mode

• Click Create

Create M2UA Cluster 1

5- Verify that the "M2ua Cluster was successfully created" message appears

Create M2UA Cluster 2

Path

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/m2ua_stacks/@[m2ua_stack]/m2ua_saps/@[m2ua_sap]/m2ua_clusters/@[m2ua_cluster]

Parameters (text)

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/m2ua_stacks/@[m2ua_stack]/m2ua_saps/@[m2ua_sap]/m2ua_clusters/@[m2ua_cluster]
loadshare_mode = "PER_LINK"
name           = "@[m2ua_cluster]"
traffic_mode   = "ACTIVE_STANDBY"

Parameters (json)

{
  "loadshare_mode" : "PER_LINK",
  "name" : "@[m2ua_cluster]",
  "traffic_mode" : "ACTIVE_STANDBY"
}

List of Parameters

• Name

• Traffic Mode

• Load Share Mode
