Adding M2PA Links

Applies to: Tmedia 3.0, 3.2, 3.3

After you create an M2PA service access point (SAP), you must create a new M2PA link. This is done from the M2PA SAP configuration window.

To create an M2PA link:

1- Click M2PA in the navigation panel:

CreateM2pa 0

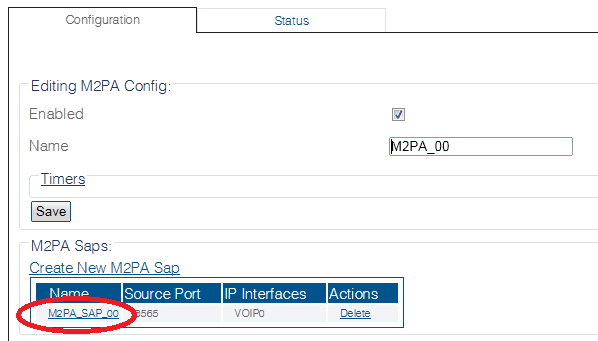

2- Select an M2PA SAP:

SelectM2paLink 0

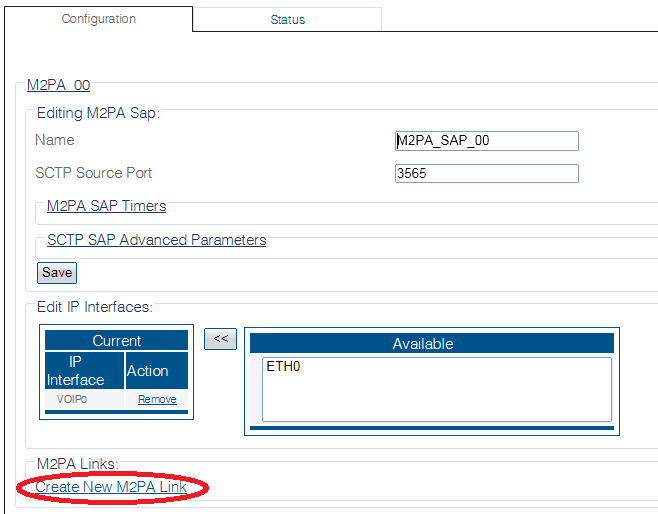

3- Click Create new M2pa link in the M2PA SAP configuration window:

Create M2PA Link 0

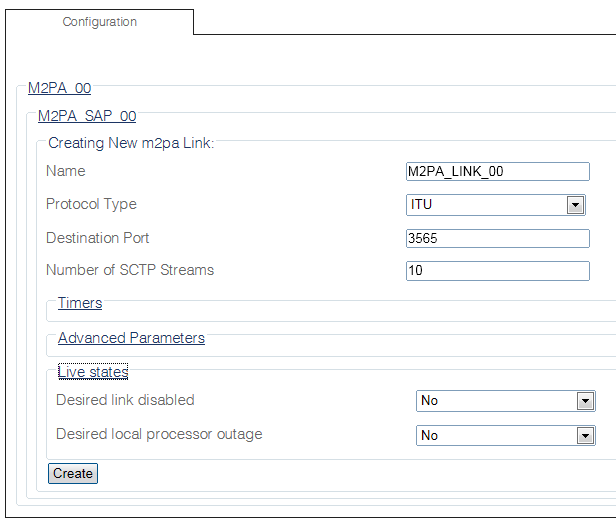

4- Configure the new link:

  • Enter a name for the link

  • Select a protocol type:

  • Set other features, as needed:

    • Destination port (same value as the one configured on the destination side)

    • Number of SCTP Streams

  • Click Create

Create M2PA Link 1

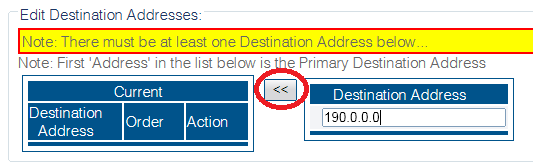

5- Enter a destination address in the appropriate box in the information panel:

  • Click the "<<" button to add the destination address to the address list

Create M2PA Link 2

6- Verify that the address has been added to the list, and that the "(your address) was successfully added" message appears (ex.: here the address is 190.0.0.0)

Create M2PA Link 3

Path

Parameters (text)

Parameters (json)

List of Parameters
