Adding a Media Gateway Controller (MGC)

Applies to: Tmedia 3.0, 3.2, 3.3

After you create an H.248 configuration, you must create a new media gateway controller (MGC).

A Media Gateway Controller (MGC) is a system used in VoIP architectures to control a number of Media Gateway terminals.

1- Click H248 in the navigation panel

Create H248 0

2- Click Create New H248 MGC in the H.248 configuration window

Create MGC 1

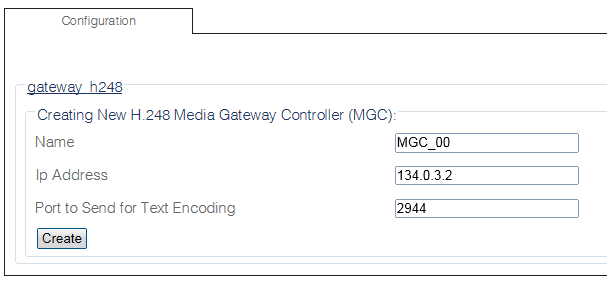

3- Configure the new MGC:

• Enter a name for the MGC

• Enter an IP address

• Click Create

Create MGC 2

4- Verify that the "h248_mgc_cfg was successfully created" message appears

Create MGC 3

Path

/configurations/@[configuration_name]/h248_stacks/@[h248_stack]/h248_media_gateway_controllers/@[h248_gateway_controller]

Parameters (text)

/configurations/@[configuration_name]/h248_stacks/@[h248_stack]/h248_media_gateway_controllers/@[h248_gateway_controller]
ip_address                     = "@[address_number]"
name                           = "@[h248_gateway_controller]"
port_to_send_for_text_encoding = @[port_number]
position                       = 1

Parameters (json)

{
  "ip_address" : "@[address_number]",
  "name" : "@[h248_gateway_controller]",
  "port_to_send_for_text_encoding" : @[port_number],
  "position" : 1
}

List of Parameters

• Name

• IP Address
