Selecting Timeslots for TDM Interfaces

Applies to: Tmedia 3.0, 3.2, 3.3

The final step in the H.248 configuration is to assign timeslots to the TDM interfaces that are associated with the H.248 configuration.

1- Click H.248 in the naviagtion panel.

Create H248 0

2- Select the line service you wish to configure, in the H.248 configuration window

(NOTE: A timeslot mask can be applied to all line services at once by selecting Timeslot mask for all line services instead)

Configure H248 LS 0

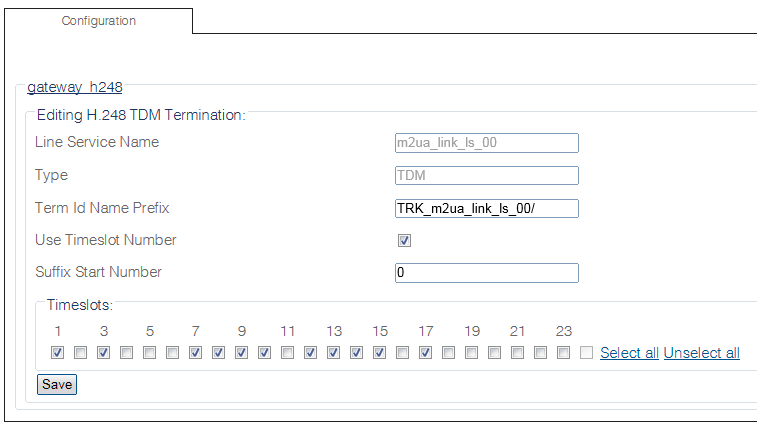

3- Select timeslots:

• Add the desired timeslots by checking individual boxes, or simply select all timeslots by clicking Select all

• Click Save

Configure H248 LS 1

4- Verify that the "h248_fix_term_cfg was successfully updated" message appears

Configure H248 LS 2

Northbound Interface

Path

h248_statcks->gateway_h248->h248_tdm_terminations->YourTrunk->TimeslotMask
