Modifying Gateway Configurations for SPIROU

Applies to: Tmedia 3.0, 3.2, 3.3

In this article, it is assumed that SS7 ISUP is configured

1- Select Gateway from the navigation panel.

ModifyGatewaySpirou 0

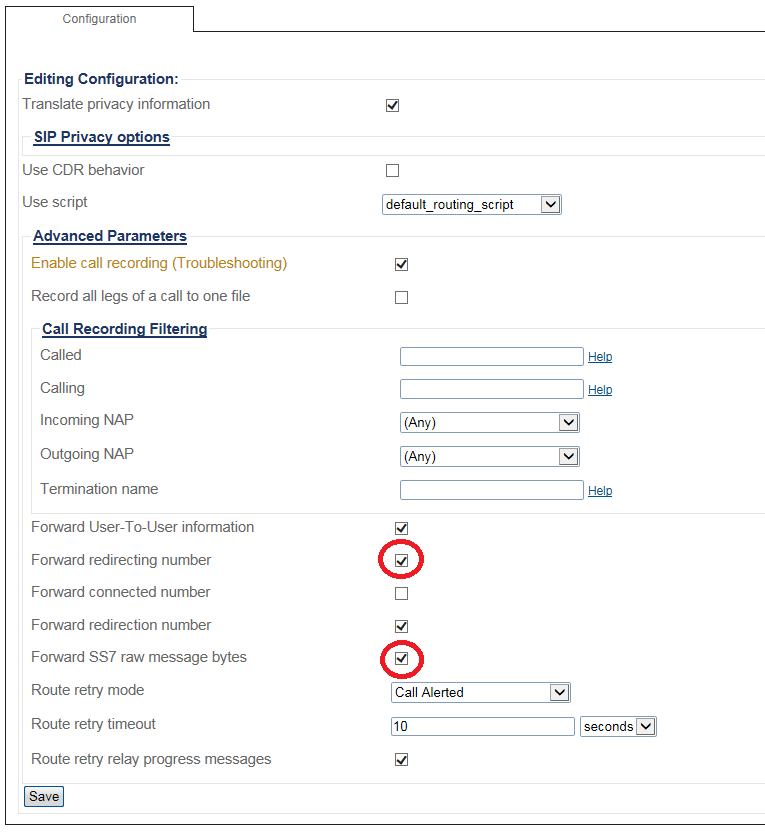

2- Expand the Advanced Parameters section and check the following parameters

• Forward redirecting number must be checked

• Forward SS7 raw message bytes must be checked

• Click Save

ModifyGatewaySpirou 1a

3- Verify that the "Gateway configuration was successfully updated" message is displayed

ModifyGatewaySpirou 2

List of Parameters

• Called

• Calling

• Incoming NAP

• Outgoing NAP

• Termination name

• Forward User-To-User information

• Forward redirecting number

• Forward connected number

• Forward redirection number

• Forward SS7 raw message bytes

• Route retry mode

• Route retry timeout

• Route retry relay progress messages
