Creating an IUA Cluster

Applies to: Tmedia 3.0, 3.2, 3.3

After you create an IUA SAP, you must create an IUA cluster for your system.

To create an IUA cluster:

1- Click IUA in the navigation panel

Create Iua Config 0

2- Select an IUA SAP

Select IUA SAP 0

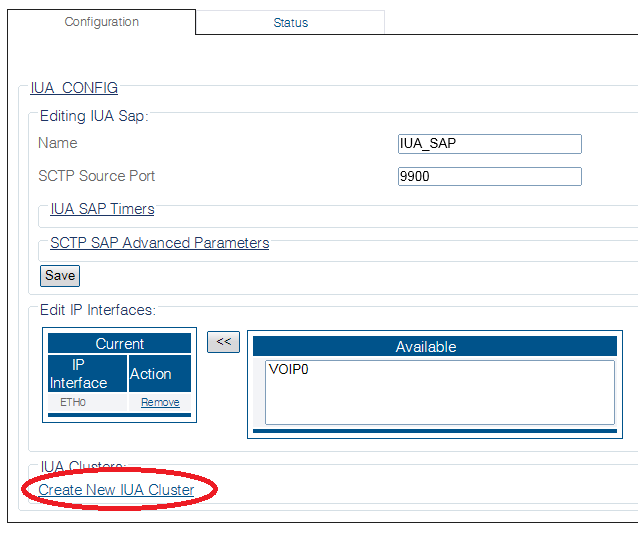

3- Click Create New Iua Cluster in the IUA SAP configuration window

Create Iua cluster 0

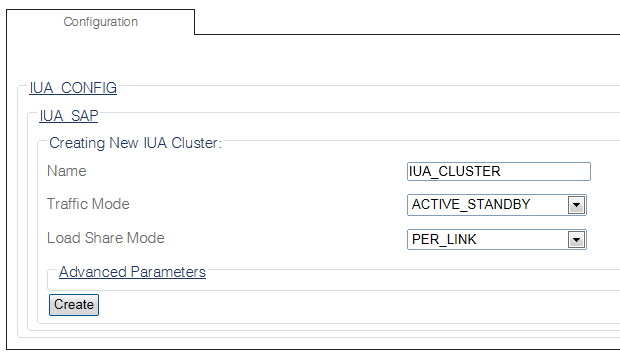

4- Configure the new IUA cluster:

  • Enter a name for the cluster

  • Select a traffic mode

  • Select a load share mode

  • Click Create

Create Iua cluster 1

5- Verify that the "Iua Cluster was successfully created" message appears

Create Iua cluster 2

Path

Parameters (text)

Parameters (json)

List of Parameters
