Creating a System Clock
Applies to: Tmedia 3.0, 3.2, 3.3
An external clock ensures that the system time is synchronized.
To create an external system clock reference:
1- Select Clocking from the navigation panel

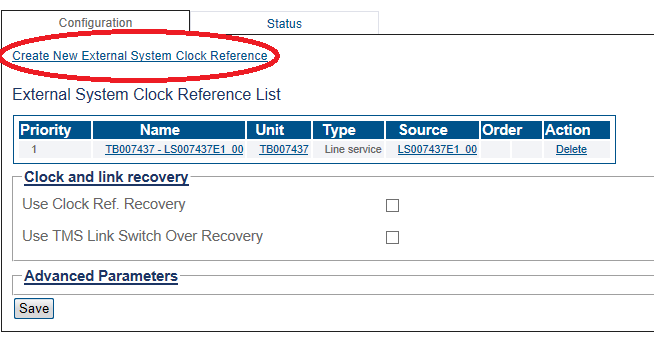

2- Click Create New External System Clock Reference.

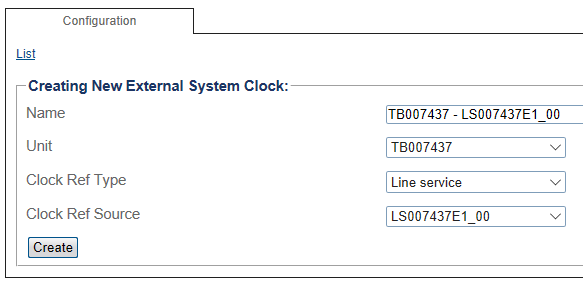

3- Enter values for the clock.
Enter a name for the new clock.
Select an available Unit.
Select a Clock Ref Type .
Select a Clock Ref Source.
Click Create.

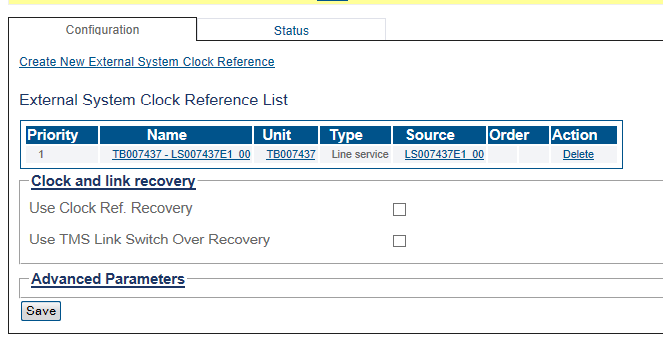

4- The new clock is displayed in the External System Clock Reference List.
Note Use TMS Link Switch Over Recovery is only used for the TMG7800
