Creating a Service Access Point (SAP)

Applies to version(s): v2.7.

Now that you have created a SIP stack and a transport server, you must must create a new service access point (SAP) for your configuration. The Service Access Point is used to bind the SIP stack with a transport server. Depending on the system configuration, multiple SAPs can be configured.

To create a new SIP SAP:

1- Click SIP in the navigation panel

Sip A 0

2- Click Edit next to the SIP stack for which you wish to create a SAP

Toolpack v2.5 Edit SIP

3- Click Create New Sap under the Service Access Points menu

Toolpack v2.5 Create SAP

4- Create the new service access point:

• Enter a name for the SAP

• Click Create

Toolpack v2.5 Creating SAP

5- Verify that the "SipSap was successfully created" message appears

Toolpack v2.5 SAP Created

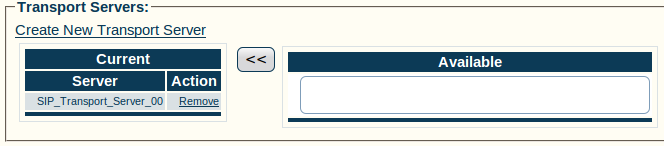

6- Associate the previously created SIP transport server with your new configuration:

• Select a transport server from the list of available servers

• Associate this configuration by clicking the "<<" button

• The transport server will now appear in the list to the left

Toolpack v2.5 Associate Server

List of Parameters

• Name
