Applies to: Tmedia 2.9, 2.10, 3.0, 3.2; SBC 3.0, 3.1
To modify Multilevel Precedence and Preemption (MLPP) Options :

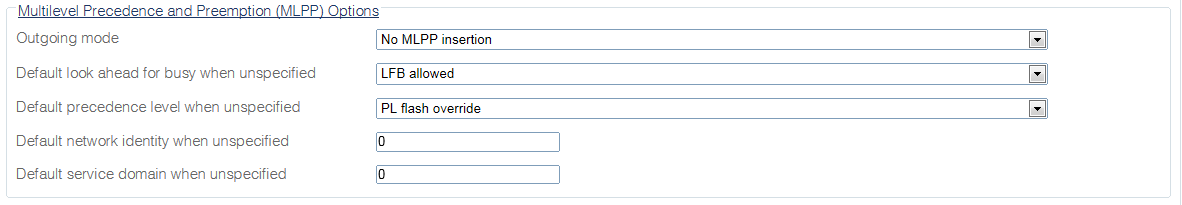

1- Click **Multilevel Precedence and Preemption (MLPP) Options ** in the Editing Profile window, to display the customizable options.
2- Modify settings as required.
Click Save
Path
Parameters (text)
Parameters (json)
MLPP Options
Last updated
Was this helpful?
Was this helpful?
/configurations/@[configuration_name]/profiles/@[profile_name]/configurations/@[configuration_name]/profiles/@[profile_name]
name = "@[profile_name]"
/configurations/@[configuration_name]/profiles/@[profile_name]/mlpp_options
look_ahead_for_busy = "LFB allowed"
network_identity = 0
outgoing_mode = "No MLPP insertion"
precedence_level = "PL flash override"
service_domain = 0{
"mlpp_options" : {
"look_ahead_for_busy" : "LFB allowed",
"network_identity" : 0,
"outgoing_mode" : "No MLPP insertion",
"precedence_level" : "PL flash override",
"service_domain" : 0
}
}
