Add Group and Weight Columns in Routes

Applies to: Tmedia 2.7

1- Click Routes in the navigation panel.

Routes 0

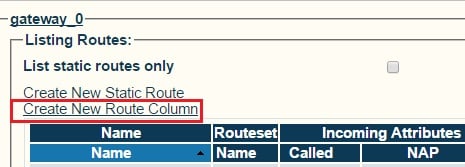

2- Click Create New Route Column on the static routes page.

Create New Route Column Rel2.7

3- Create 2 New Route Columns: group and weight

• Enter a name for the column

• Type Attributes: integer

• Default: leave it blank or give it a value

group: a lower value will have a higher priority weight: matching routes of the same group will load share according to the weight parameter

Added Column group rel2.7

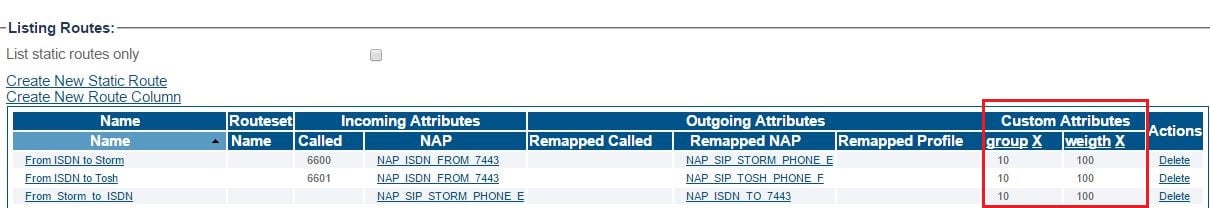

Routes List group weight rel2.7
