Add Digitmap Files to the System

Applies to: Tmedia 2.5, 2.6

A Digitmap file uses a comma delimited CSV format in a text file, to indicate the desired Direct Inward Dialling (DID) numbers for the system.

For example:

called,calling,routeset_name
403200,,Calgary_AB
514201,,Montreal_Qc
514202,,Montreal_Qc
514203,,Montreal_Qc

To add Digitmap files to the system:

1- Click FileDB in the navigation panel

FileDB 0 A

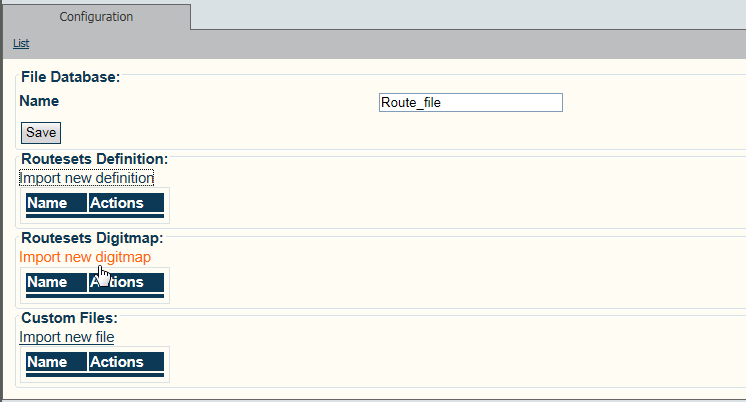

2- Click Import new digitmap

DigitMap 0 A

3- Click Browse and select the Digitmap that you wish to import.

• Click Import

DigitMap 1 A

4- The Digitmap files are displayed in the Routesets digitmap table.

DigitMap 2 A
