Configuring IP Interfaces

The IP interface of the VoIP0 and VoIP1 ports can be configured by setting the following:

• IP Address

• Netmask

• Gateway

To configure a VoIP0 or VoIP1 port

1. Select IP Interfaces from the navigation panel:

Toolpack v2.5 Navigation Panel IP Interfaces

1. Click Edit from the IP Interfaces Information panel:

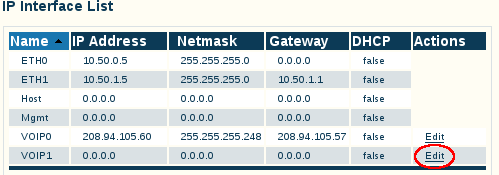

Toolpack v2.5 Edit IP Interface

1. Configure the IP port:

• Indicate whether or not to use DHCP on this port

• Enter an IP address

• Enter a Netmask

• Enter a gateway address

• Click Save

Note: The IP addresses of ETH0, ETH1, VOIP0 and VOIP1 must be on different subnets.

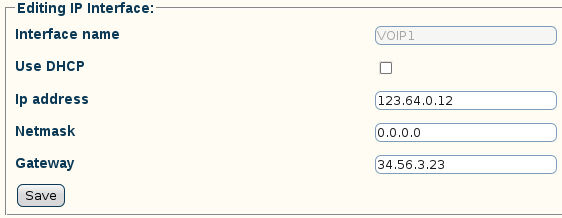

Toolpack v2.5 Editing IP Interface

1. The changes are displayed in the IP interfaces information panel:

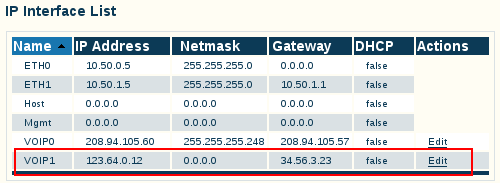

Toolpack v2.5 IP Interface Edited

IMPORTANT! The system will display the following notice, describing steps to apply your new configuration:

Toolpack v2.5 IP Interface Alert

1. Activate the configuration

Systems -> Edit -> Activate

1. Reboot the adapter (will drop active calls)

Status -> Adapters -> Click on the adapter Serial Number -> Reboot adapter

It will take about 1.5 minutes to restart the unit.

List of Parameters

• Use DHCP

• IP Address

• Netmask

• Gateway
