Create an MTP3 Route

MTP3 routes are built to route traffic from previously created point codes using linksets. One route is created per prevously defined point codes.

To create an MTP3 route:

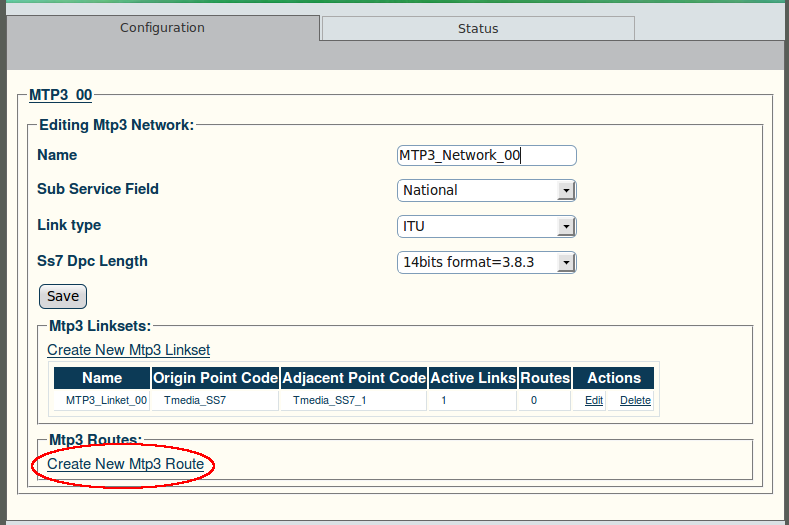

1. Click "Create New Mtp3 Route" in the MTP3 network configuration window:

Web Portal v2.4 Create MTP3 Route

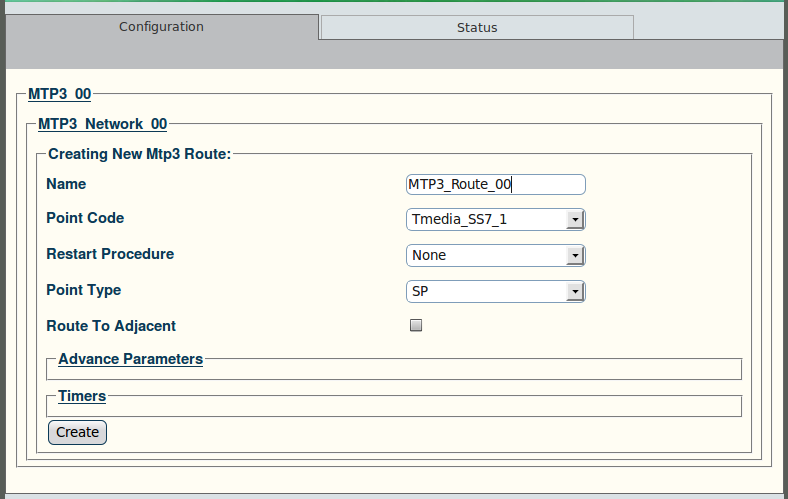

2. Configure the new MTP3 route:

• Enter a name for the route

• Select a point code for the route

• Select a restart procedure:

  • None

  • ITU88

  • ITU92

  • ANSI

• Select a point type:

  • SP (Signalling Point)

  • STP (Signal Transfer Point)

• Check Route to Adjacent, if this route is to the adjacent network

• Click "Create" to finalize the configuration

Web Portal v2.4 Creating MTP3 Route

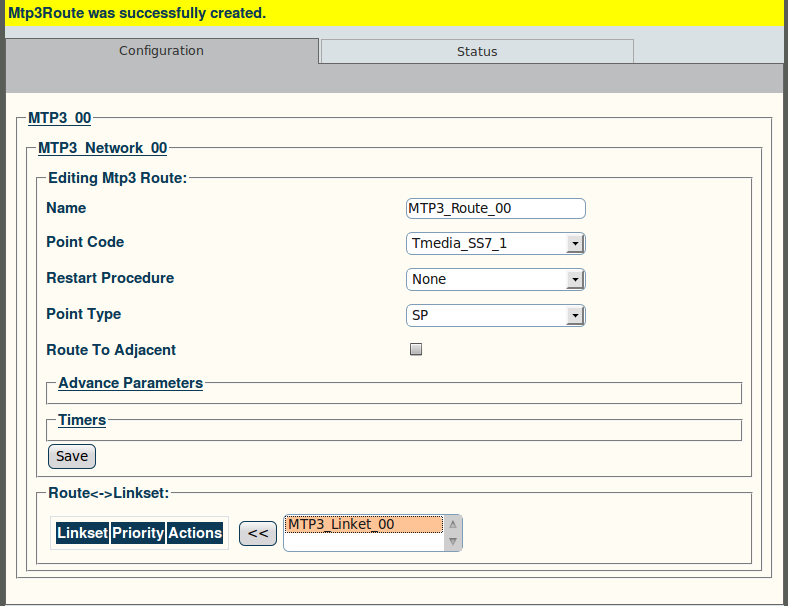

3. Verify that the "Mtp3Route was successfully created" message appears:

Web Portal v2.4 MTP3 Route Created

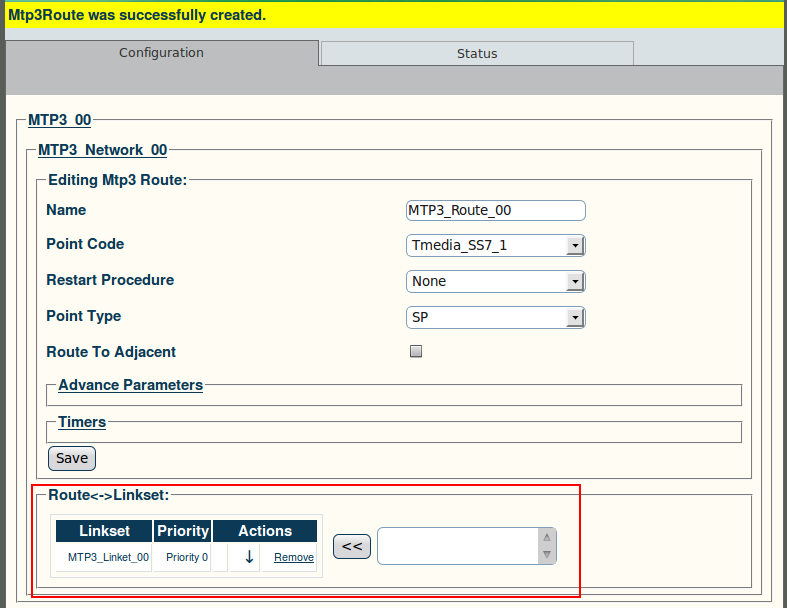

4. Associate the newly created route with a linkset:

• Select a linkset from the list provided at the bottom of the route configuration window

• Click the "<<" button to associate the linkset with the newly created route

Web Portal v2.4 MTP3 Route Linkset
