Create an MTP3 Linkset

To create an MTP3 linkset:

1. Click "Create New Mtp3 Linkset" in the MTP3 Network configuration panel:

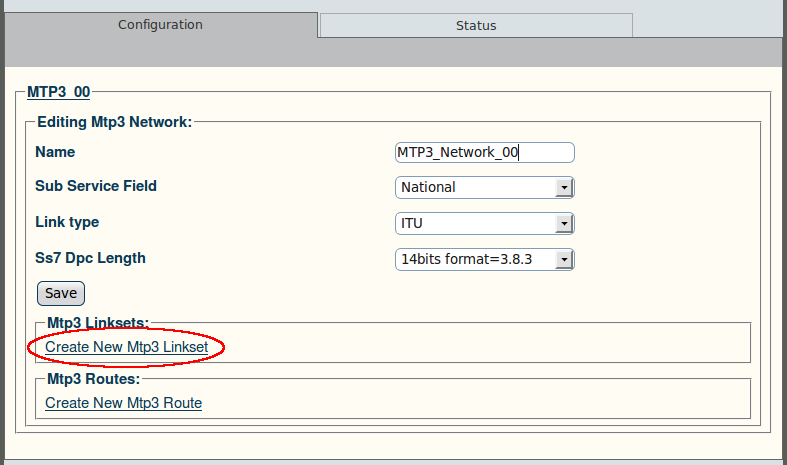

Web Portal v2.4 Create MTP3 Linkset

2. Configure the new linkset:

• Enter a name for the linkset

• Select an origin point code

• Select a destination point code

• Click "Create" to finalise the configuration

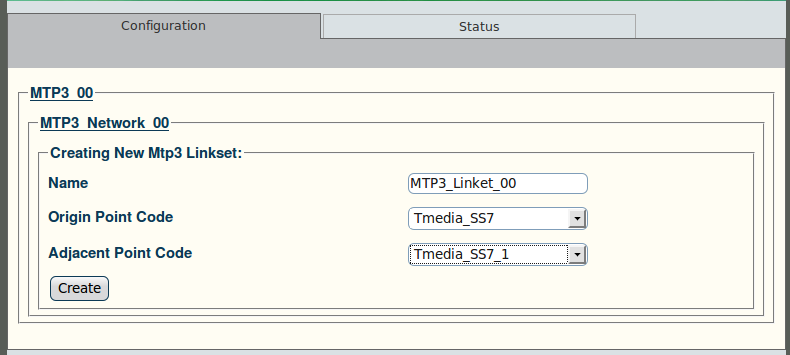

Web Portal v2.4 Creating MTP3 Linkset

3. Verify that the "Mtp3Linkset was successfully created" message appears:

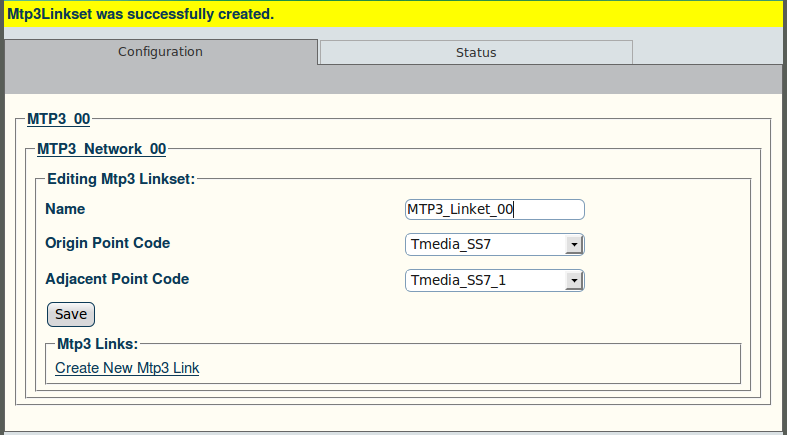

Web Portal v2.4 MTP3 Linkset Created
