Create an MTP2 Configuration
MTP Level 2 (MTP2) provides the data link layer functionality within the OSI mode and is a service provider to the MTP3 link layer.
To create an MTP2 configuration:

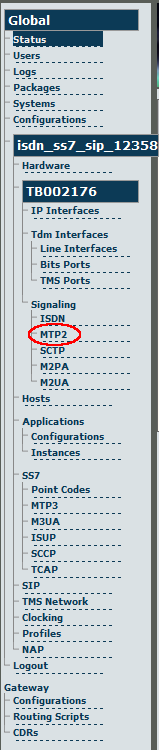

1. Click "MTP2" in the navigation panel:

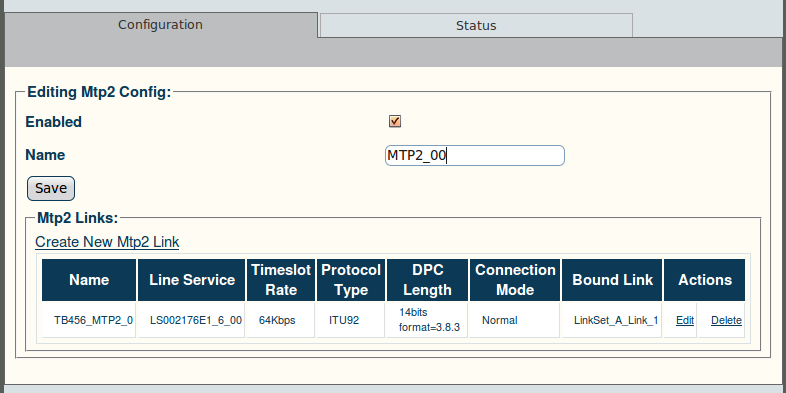

2. Create the new MTP2 configuration:
Enter a name for the configuration
Click "Save" to finalize the configuration

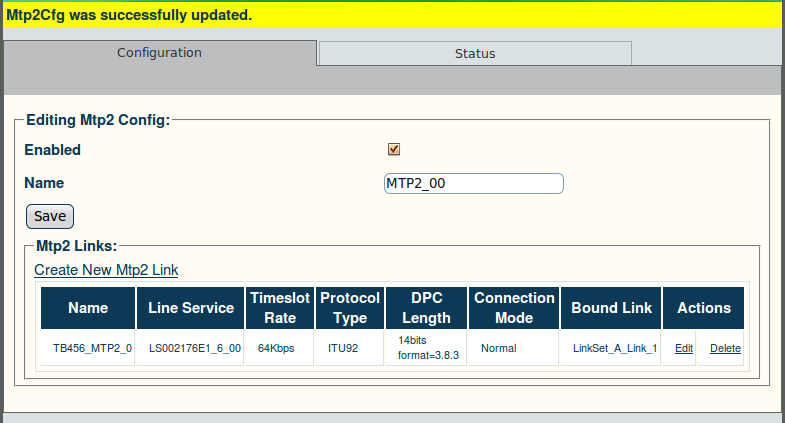

3. Verify that the "Mtp2Cfg was successfully updated" message appears, and that the "enabled" box is checked:
