Create an ISUP User Part

To create an ISUP user part:

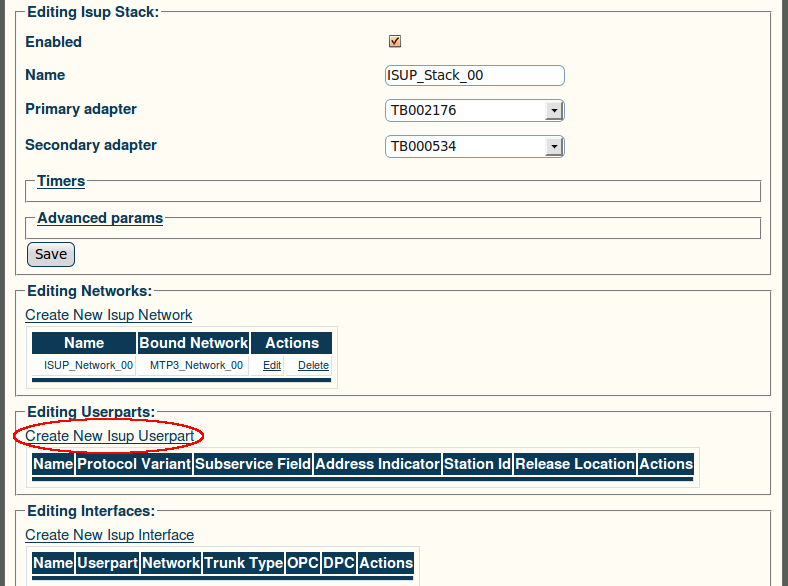

1. Click "Create New Isup Userpart" in the ISUP stack configuration window:

Web Portal v2.4 Create ISUP User Part

2. Configure the new ISUP user part:

• Enter a name for the user part

• Select a protocol variant:

  • ANSI88

  • ANSI92

  • ANSI96

  • TELCORDIA

  • ITU

  • ITU97

  • SINGAPORE

  • Q767

  • NTT

  • CHINA

  • ETSI

  • ETSIV3

  • UK

• Select an MTP3 sub service field (the same that was previously set for MTP3)

• Select an address indicator type ("Not Present", Subscriber Number, National Number, or International Number)

• Select a Numbering Plan:

  • Unknown

  • ISDN

  • Telephony

  • Data

  • Telex

  • National

  • Private

  • or, Reserved

• Select an ISUP Release Location:

  • User

  • Private Network LU

  • Public Network LU

  • Transit Network

  • Private Network RU

  • Public Network RU

  • Local Interface

  • International Network

  • Network beyond internetworking point

  • or, No info

• Click "Create" to finalize the configuration

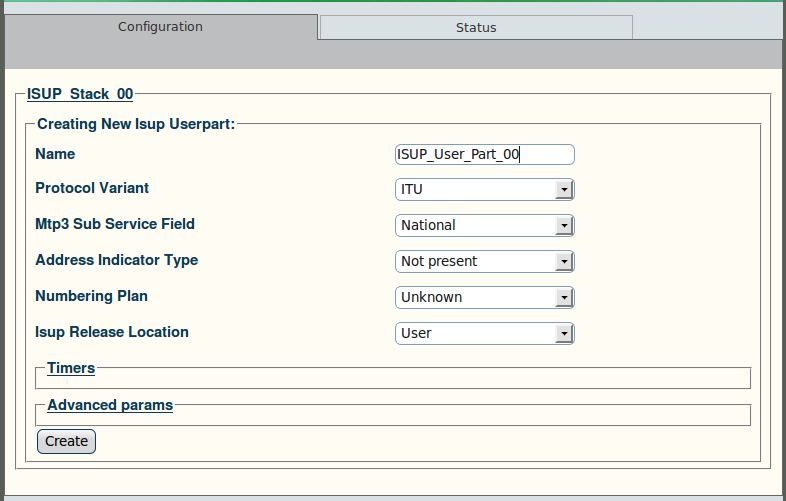

Web Portal v2.4 Creating ISUP User Part

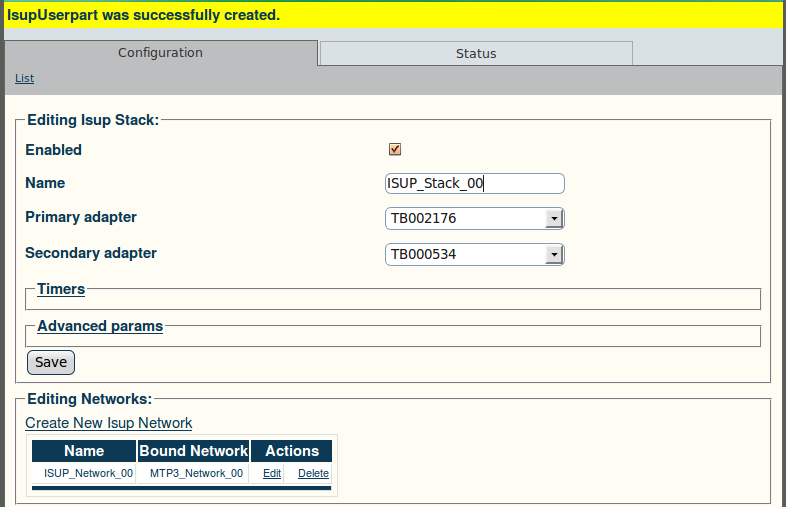

3. Verify that the "IsupUserpart was successfully created message appears:

Web Portal v2.4 ISUP User Part Created
