Create an ISUP Stack

ISUP is responsible for the handling of calls.

To create an ISUP stack:

1. Click "ISUP" in the navigation panel:

Web Portal v2.4 Navigation Panel ISUP

2. Click "Create New Stack" in the ISUP information panel:

Web Portal v2.4 Create ISUP Stack

3. Configure the new ISUP stack:

• Enter a name for the stack

• Select a primary hardware adapter for the stack

• Select a secondary hardware adapter for the stack

• Click "Create" to finalize the configuration

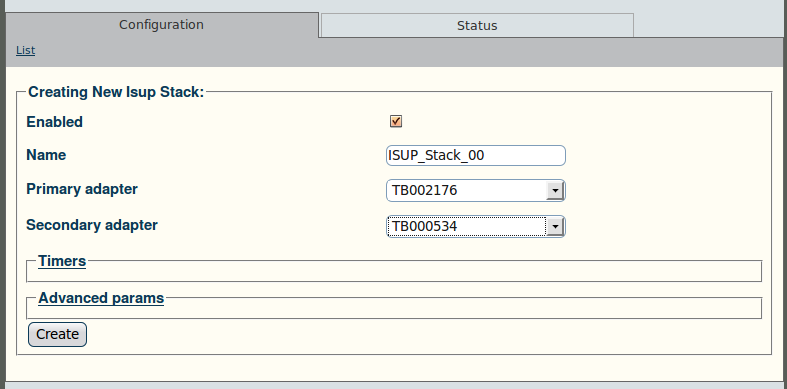

Web Portal v2.4 Creating ISUP Stack

4. Verify that the "IsupStack was successfully created" message appears:

Web Portal v2.4 ISUP Stack Created
