Create MTP3 Links (M2PA)
A linkset is used to logically combine multiple MTP3 links going to the same DPC into a single entity. One linkset could be the links between a point code identifying the Tmedia/Tdev SS7 node and a point code identifying the adjacent SS7 equipment.
To create an MTP3 link:
1. Click "Create New Mtp3 Link" in the MTP3 linkset configuration window:

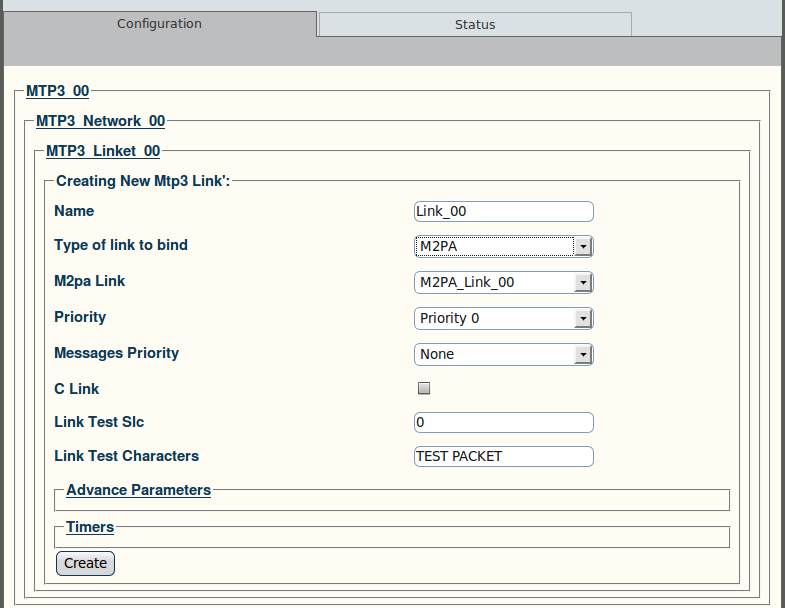

2. Configure the new MTP3 link:
Enter a name for the link
Under "Type of link to bind", select M2PA.
Select an MTP2 link
Select a priority level (from 0 to 3)
Select a Messages priority (from "none" to 3)
Set the C Link value
Enter a Link Test Slc (this value is unique in the link list)
Enter Link Test Characters
Click "Create" to finalize the configuration
3. Verify that the "Mtp3Link was successfully created" message appears:
