Create MTP2 Links

The MTP2 link is used to connect the MTP2 physical layer to a line service carrying SS7 signaling.

To create an MTP2 link:

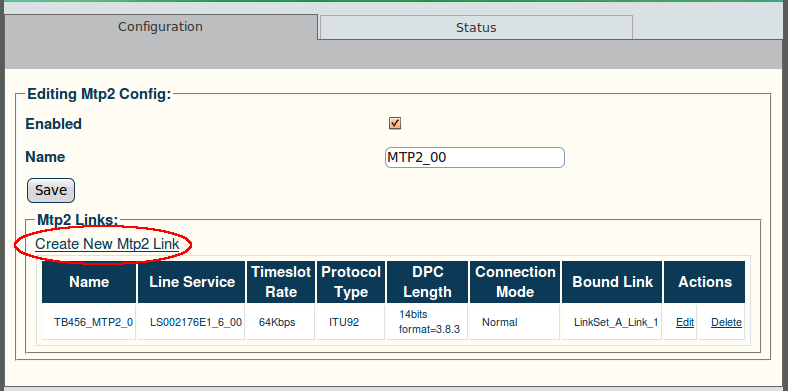

1. Click "Create New Mtp2 Link" in the MTP2 configuration window:

Web Portal v2.4 Create MTP2 Link

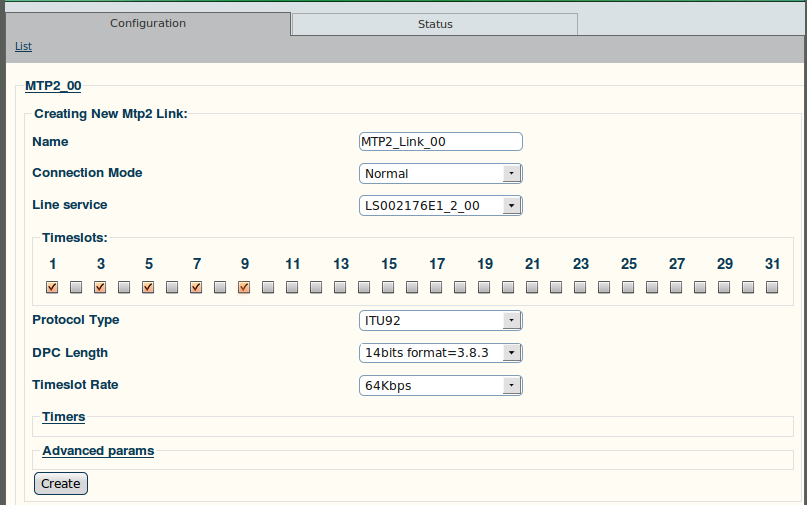

2. Configure the new MTP2 link:

• Enter a name for the new link

• Select a connection mode:

  • Normal

  • Hsl

• Select a line service

• Assign timeslots to the link

• Select a protocol type:

  • ITU92

  • ITU88

  • ANSI88

  • ANSI92

  • TTC

  • NTT

• Select a DPC length:

  • 16 bits

  • 24 bits

• Select a timeslot rate:

  • 64 Kbps

  • 56 Kbps

  • 48 Kbps

• Click "Create" to finalize the configuration

Web Portal v2.4 Creating MTP2 Link

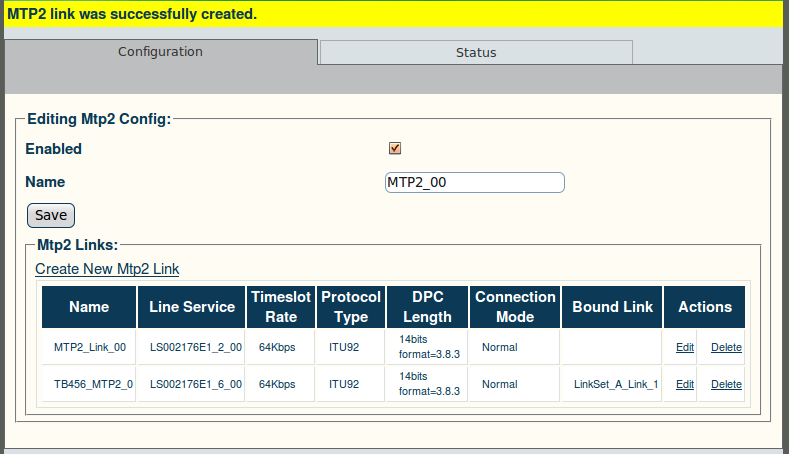

3. Verify that the "MTP2 link was successfully created" message appears:

Web Portal v2.4 MTP2 Link Created
