Create M2UA Peers

To create an M2UA peer:

1. Click "Create New M2ua Peer" in the M2UA cluster configuration window:

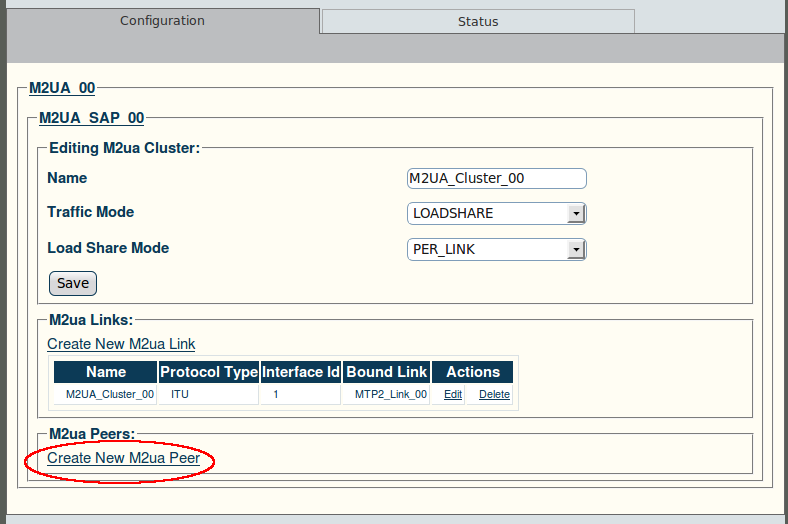

Web Portal v2.4 Create M2UA Peer

2. Configure the new M2UA peer:

• Enter a name for the peer

• Enter a destination port (as configured in the destination element)

• Click "Create" to finalize the configuration

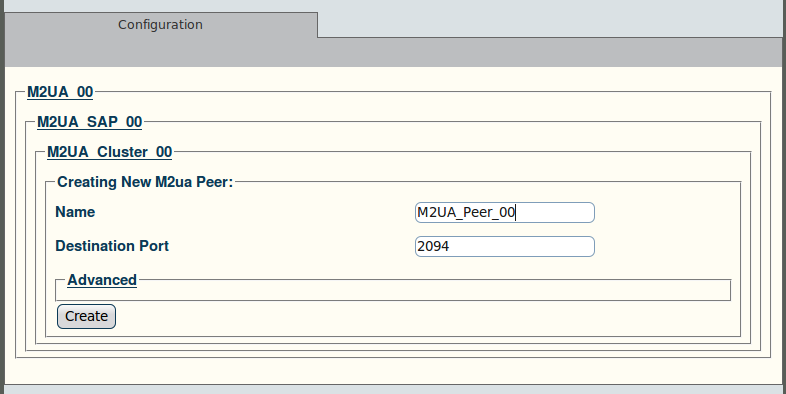

Web Portal v2.4 Creating M2UA Peer

3. Verify that the "M2ua Peer was successfully created" message appears:

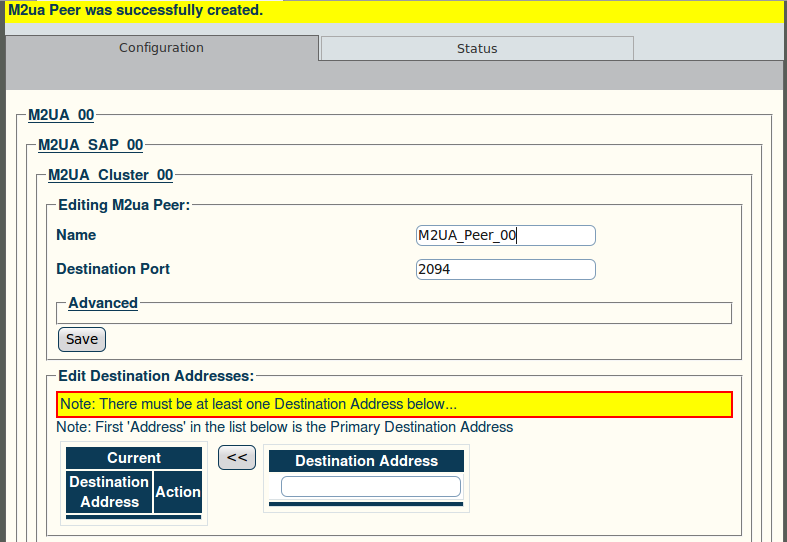

Web Portal v2.4 M2UA Peer Created

4. Enter a destination address for the peer:

• Enter a destination address

• Click the "<<" button to add it to the list of destination addresses

• Verify that the "(your address) was successfully added" message appears

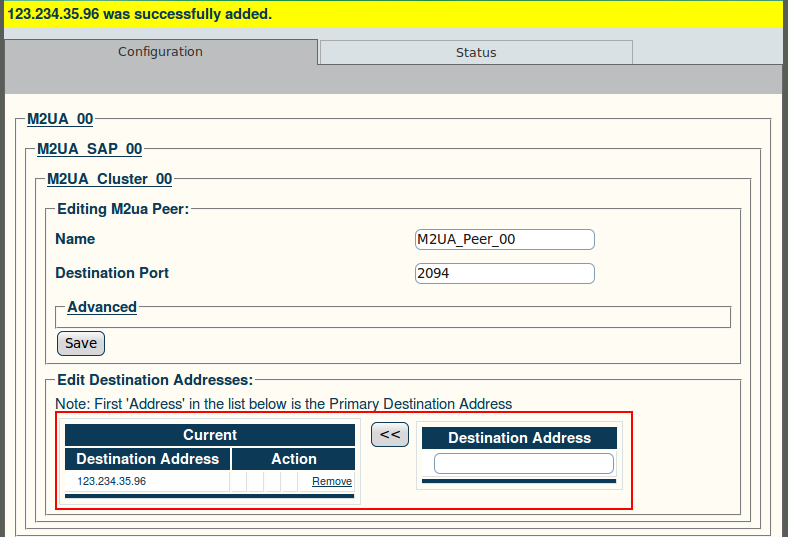

Web Portal v2.4 M2UA Peer Address
