Create M2UA Links

To create an M2UA link:

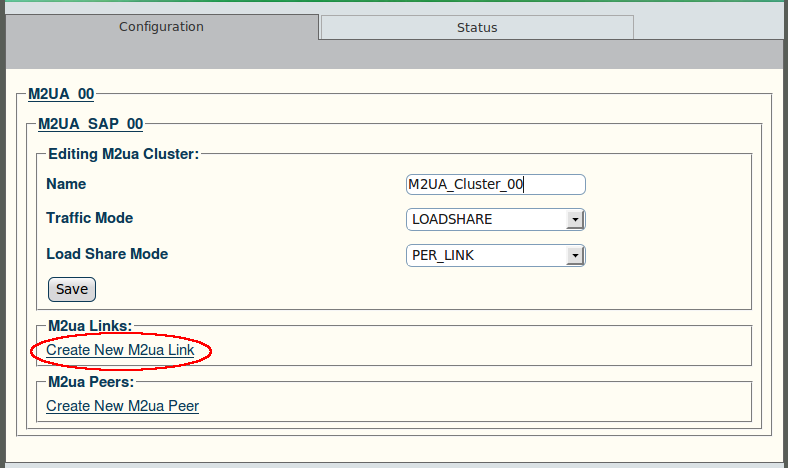

1. Click "Create New M2ua Link" in the M2UA cluster configuration window:

Web Portal v2.4 Create M2UA Link

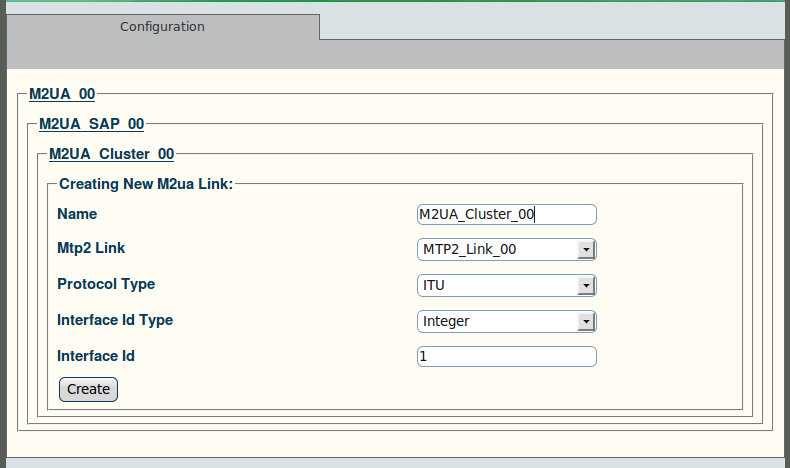

2. Configure the new M2UA link:

• Enter a name for the link

• Signaling gateway: Select a MTP2 link, Media gateway controller: Select NONE

• Select a protocol type (same as MTP2):

  • ITU

  • ANSI

  • TTC

• Select an interface ID type:

  • Integer

  • String

• Enter an appropriate interface ID (must be unique to each link)

• Click "Create" to finalize the configuration

Web Portal v2.4 Creating M2UA Link

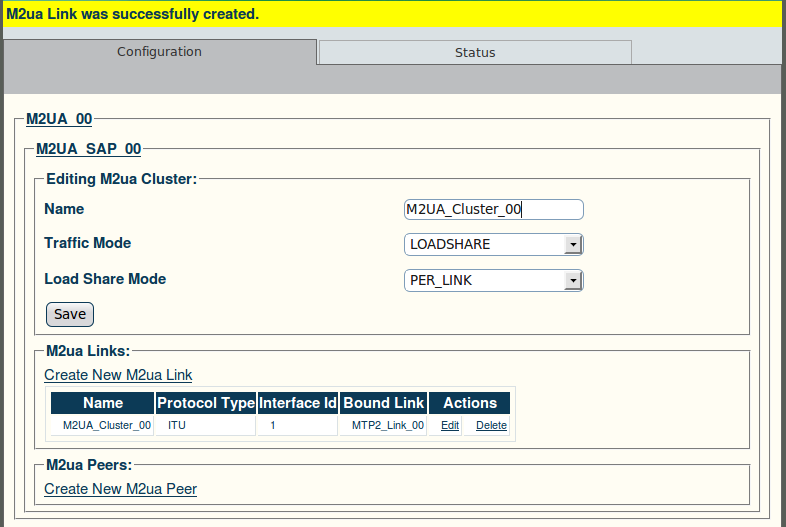

3. Verify that the "M2ua Link was successfully created" message appears:

Web Portal v2.4 M2UA Link Created
