Create ISUP CIC Groups
To create an ISUP CIC group:

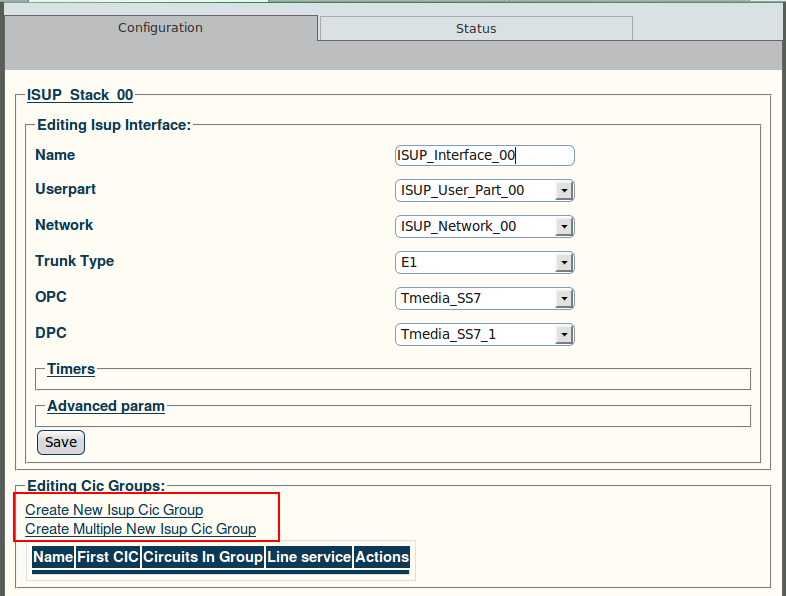

1. Click "Create New Isup Cic Group" in the ISUP interface configuration window (a number of groups can be created at once by clicking "Create Multiple New Isup Cic Group"):

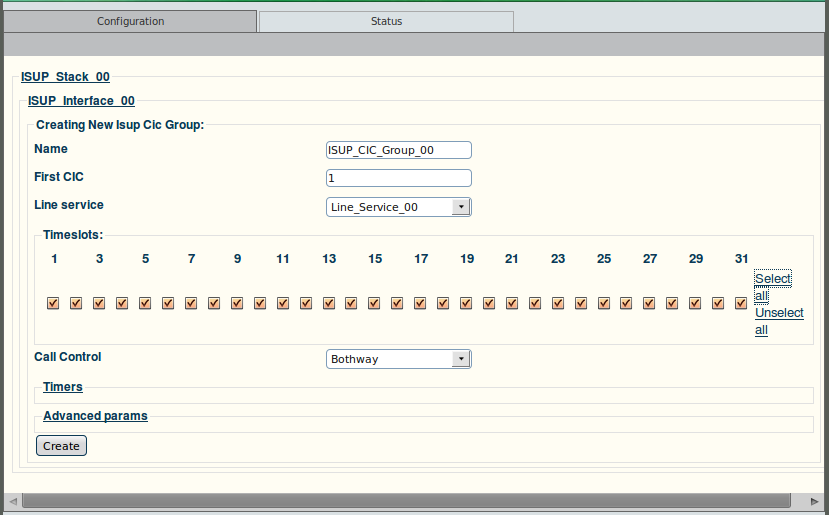

2. Configure the new ISUP CIC group:
Enter a name for the group
Enter a number for the first CIC in the group (this value must follow other CIC group value, and not overlap)
Select a line service
Check the appropriate timeslots (click "Select all" to check all timeslots)
Select a call control method
Click "Create" to finalize the configuration

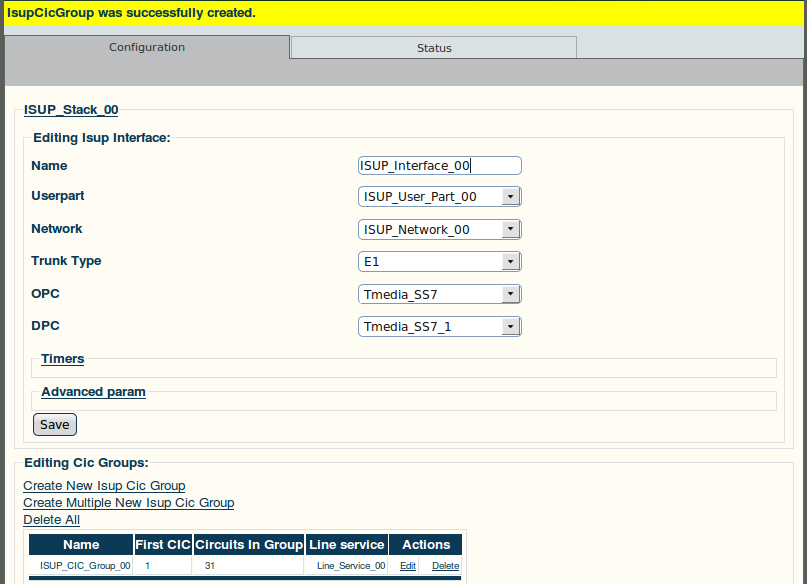

3. Verify that the "IsupCicGroup was successfully created" message appears:
