Create an M3UA SAP

To create an M3UA SAP:

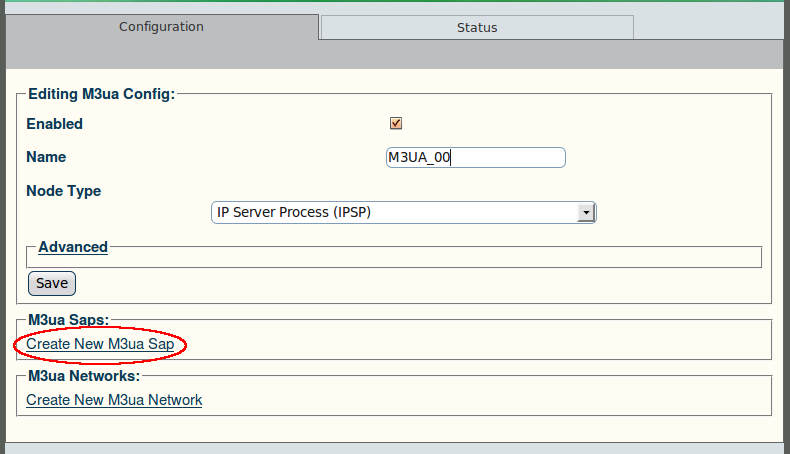

1. Click "Create New M3ua Sap" in the M3UA information panel:

Web Portal v2.4 Create M3UA SAP

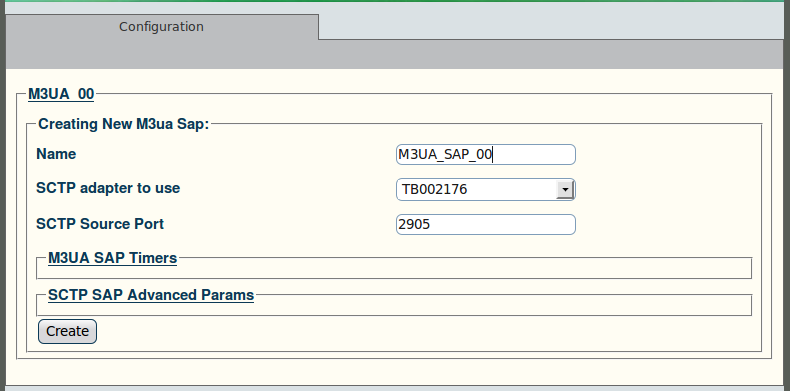

2. Configure the new SAP:

• Enter a name for the SAP

• Select an adapter to use

• Select a source port

• Click "Create" to finalize the configuration

Web Portal v2.4 Creating M3UA SAP

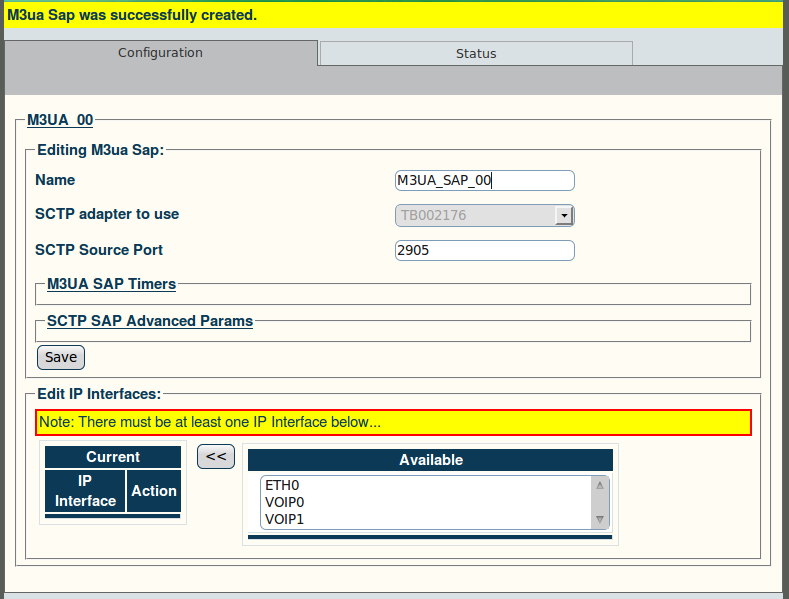

3. Verify that the "M3ua Sap was successfully created" message appears:

Web Portal v2.4 M3UA SAP Created

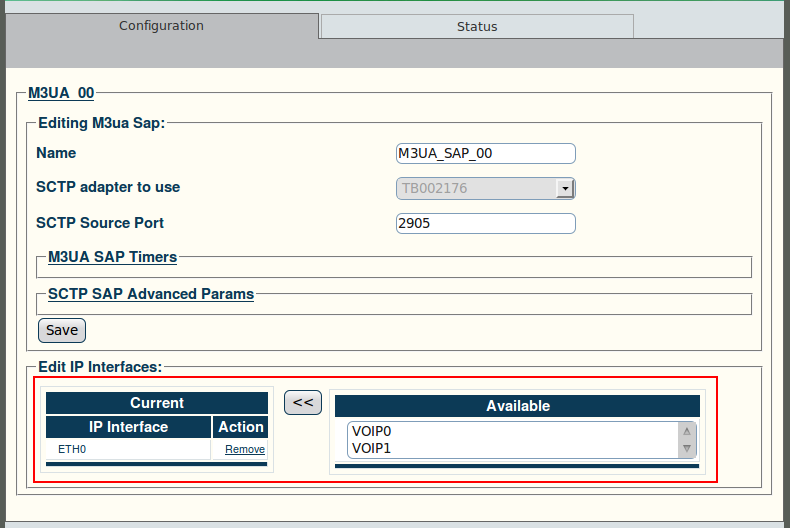

4. Associate an IP interface with the new SAP:

• Select an available IP interface

• Click the "<<" button to associate the interface with the SAP

Web Portal v2.4 M3UA SAP IP
