Create an M3UA Route

To create an M3UA route:

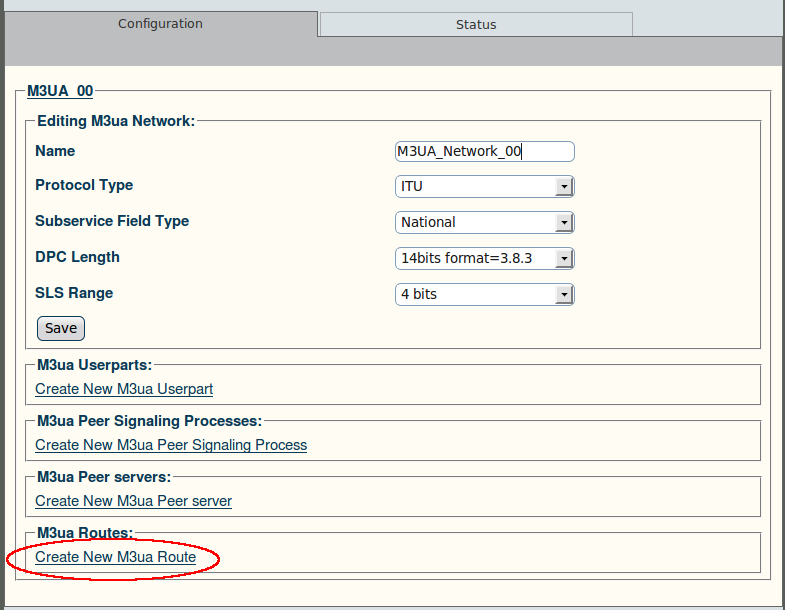

1. Click "Create New M3ua Route" in the M3UA network configuration window:

Web Portal v2.4 Create M3UA Route

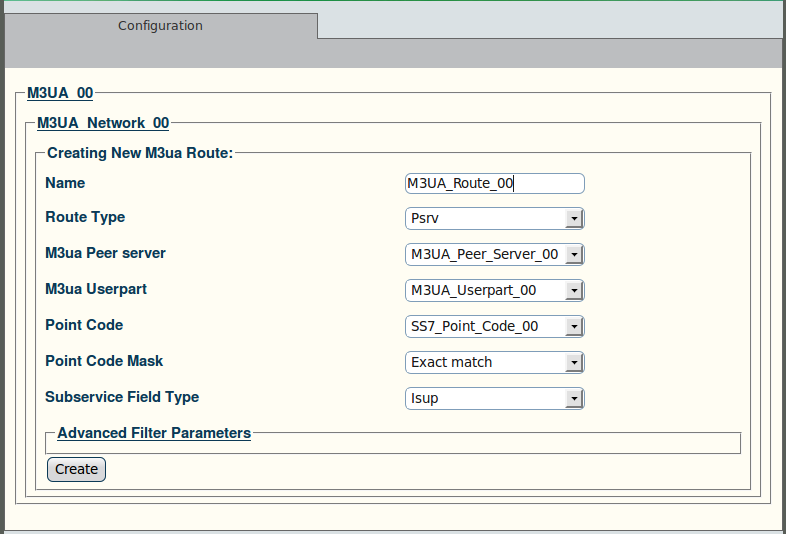

2. Configure the new M3UA route:

• Enter a name for the route

• Select a route type:

  • Local (not used)

  • Mtp3 (not used: Signalling gateway only)

  • Psrv

• Select an M3UA peer server (choose Local Peer server, if associated with an OPC, select Remote Peer server, if using DPC)

• Select an M3UA user part (select NONE, if associated with a DPC)

• Select a point code

• Select a point code mask (Recommanded value: Exact match)

• Select a sub-service field type:

  • None

  • SCCP

  • ISUP

• Click "Create" to finalize the configuration

Web Portal v2.4 Creating M3UA Route

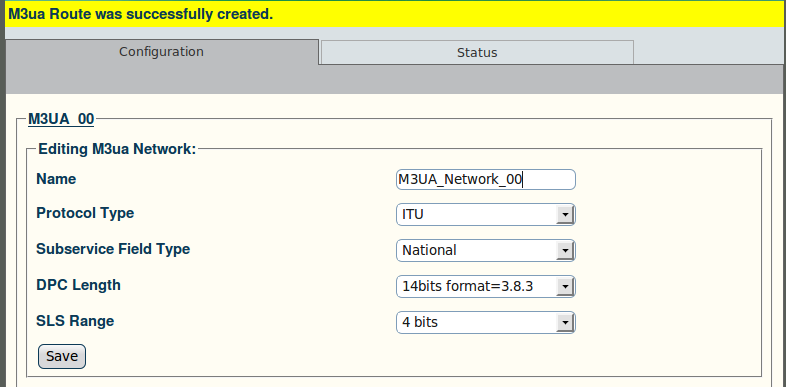

3. Verify that the "M3ua Route was successfully created" message appears:

Web Portal v2.4 M3UA Route Created
