Create an M3UA Peer Signalling Process (IPSP)
To create an M3UA Peer Signalling Process (PSP):
1. Click "Create New M3ua Peer Signaling Process" in the M3UA network configuration window:

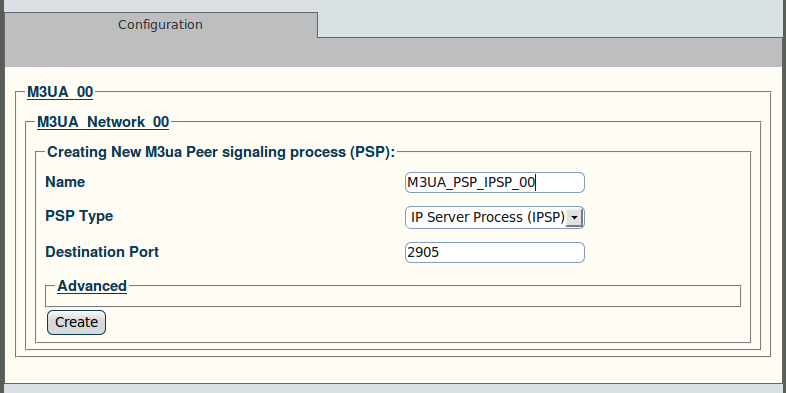

2. Configure the new M3UA PSP:
Enter a name for the PSP
Select "IP Server Process (IPSP)" as the PSP type
Enter a destination port (as configured in the destination element)
Click "Create" to finalize the configuration

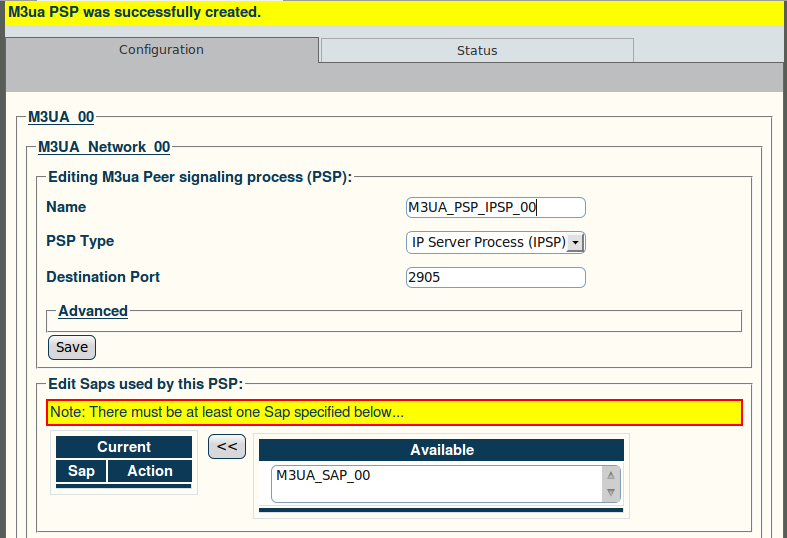

3. Verify that the "M3ua PSP was successfully created" message appears:
4. Associate a SAP with the new PSP:
Select a SAP from the list of available SAPs
Click the "<<" button to associate it with the PSP

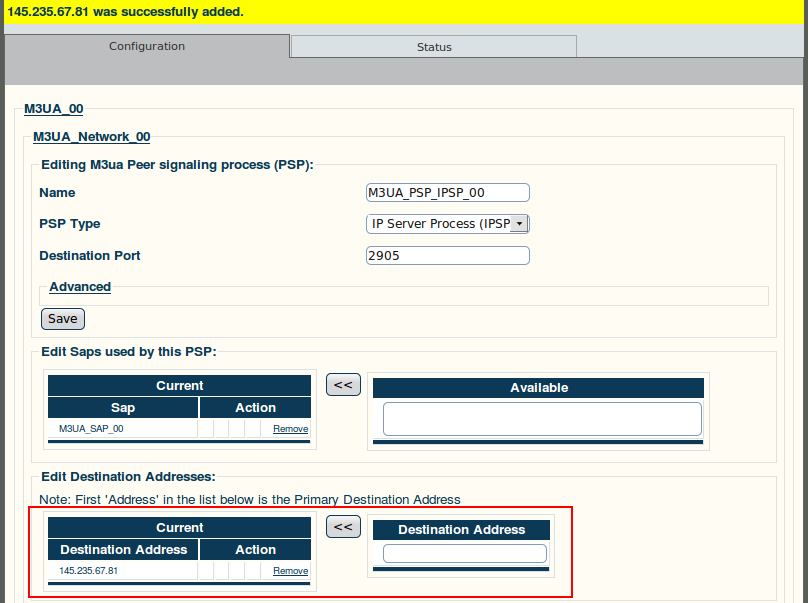

5. Enter a destination address for the PSP:
Enter a destination address
Click the "<<" button to add the destination address to the PSP
Verify that the "(your address) was successfully added" message appears
