Create an M3UA Peer Signalling Process (ASP)

To create an M3UA Peer Signalling Process (PSP):

1. Click "Create New M3ua Peer Signaling Process" in the M3UA network configuration window:

Web Portal v2.4 Create M3UA PSP

2. Configure the new M3UA PSP:

• Enter a name for the PSP

• Select "Signalling Gateway Process (SGP)" as the PSP type

• Enter a destination port

• Click "Create" to finalize the configuration

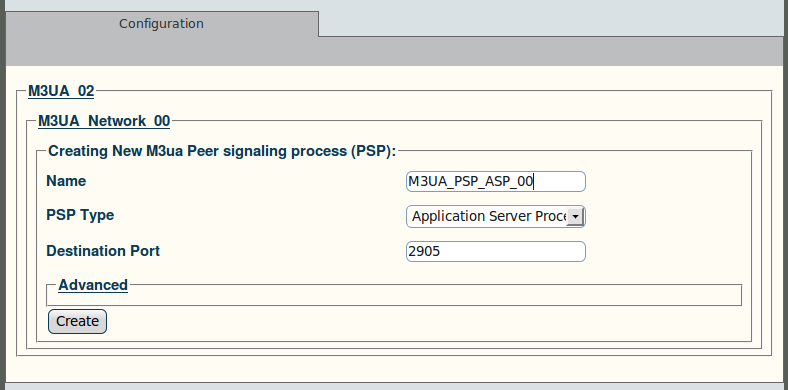

Web Portal v2.4 Creating M3UA PSP ASP

3. Verify that the "M3ua PSP was successfully created" message appears:

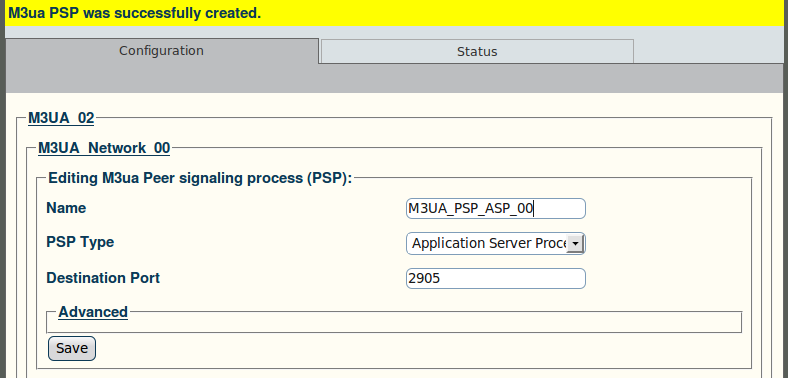

Web Portal v2.4 M3UA PSP Created ASP

4. Associate a SAP with the new PSP:

• Select a SAP from the list of available SAPs

• Click the "<<" button to associate it with the PSP

Web Portal v2.4 M3UA PSP SAP

5. Enter a destination address for the PSP:

• Enter a destination address

• Click the "<<" button to add the destination address to the PSP

• Verify that the "(your address) was successfully added" message appears

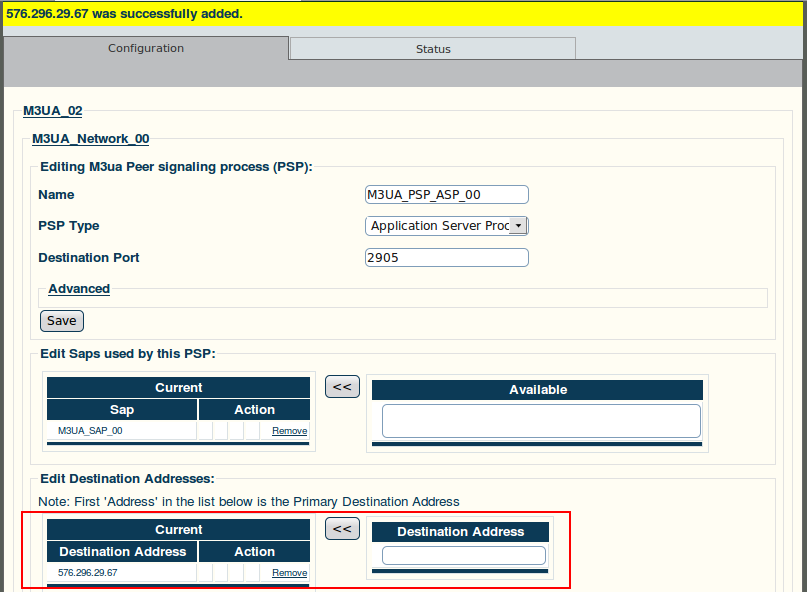

Web Portal v2.4 M3UA PSP Address ASP
