Create an M3UA Network

To create an M3UA network:

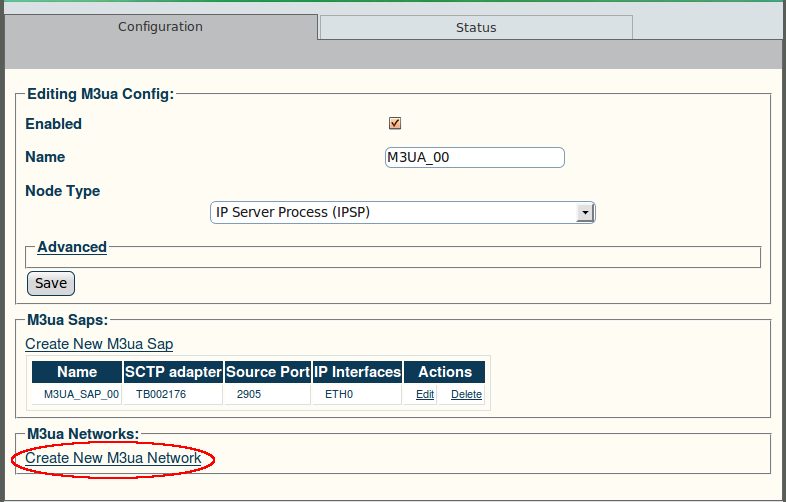

1. Click "Create New M3ua Network" in the M3UA information panel:

Web Portal v2.4 Create M3UA Network

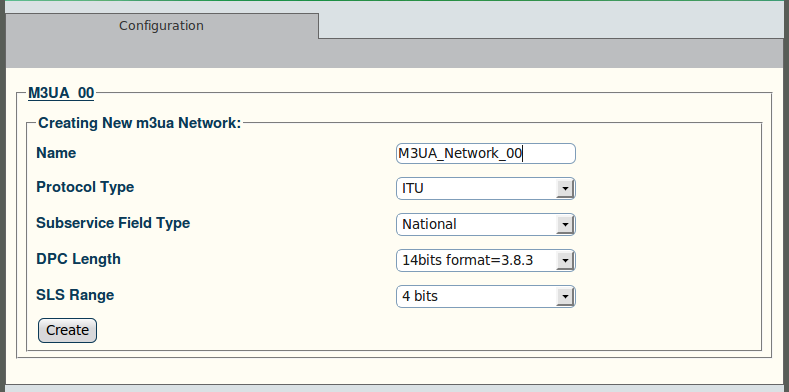

2. Configure the new M3UA network:

• Enter a name for the network

• Select a protocol type:

  • ITU

  • ANSI

  • CHINA

  • TTC

• Select a sub-service field:

  • International

  • National

  • National_Reserved

  • International_Reserved

• Select a DPC length:

  • 14 bits

  • 16 bits

  • 24 bits

• Select an SLS range:

  • 4 bits

  • 5 bits

  • 8 bits

• Click "Create" to finalize the configuration

Web Portal v2.4 Creating M3UA Network

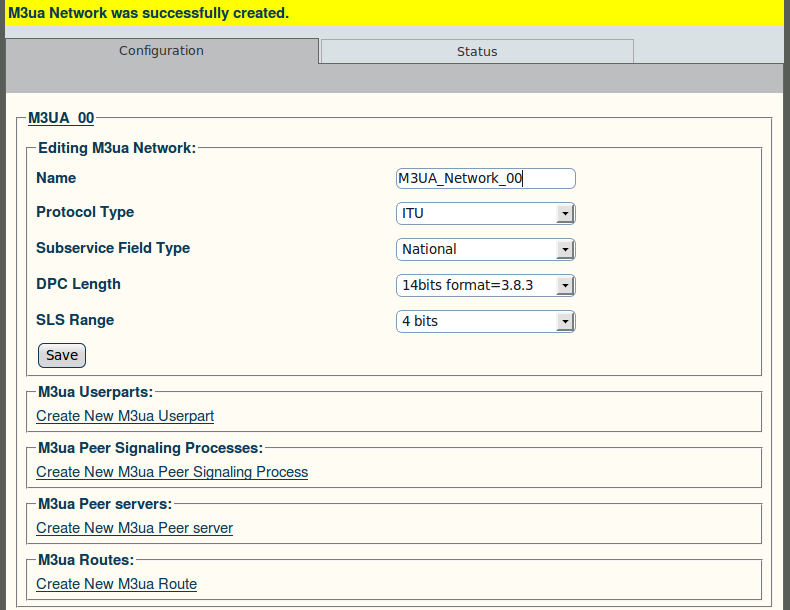

3. Verify that the "M3ua Network was successfully created" message appears:

Web Portal v2.4 M3UA Network Created
