Create an M3UA Configuration (SGP)

To create an SGP M3UA configuration:

1. Click "M3UA" in the navigation panel:

Web Portal v2.4 Navigation Panel M3UA

2. Configure the M3UA service for SGP:

• Enter a name for the configuration

• Select "Signaling Gateway Process (SGP)" as the node type

• Click "Create" to finalize the configuration

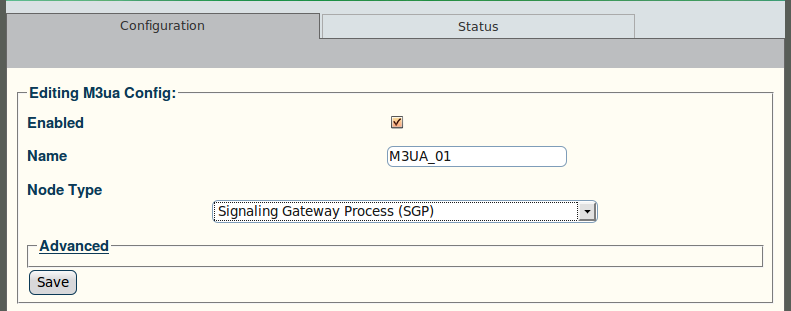

Web Portal v2.4 Creating SGP M3UA Configuration

3. Verify that the "M3ua Cfg was successfully created" message appears:

Web Portal v2.4 SGP M3UA Configuration Created
