Create an M3UA Configuration (ASP)

To create an ASP M3UA configuration:

1. Click "M3UA" in the navigation panel:

Web Portal v2.4 Navigation Panel M3UA

2. Configure the M3UA service for ASP:

• Enter a name for the configuration

• Select "Application Server Process (ASP)" as the node type

• Click "Create" to finalize the configuration

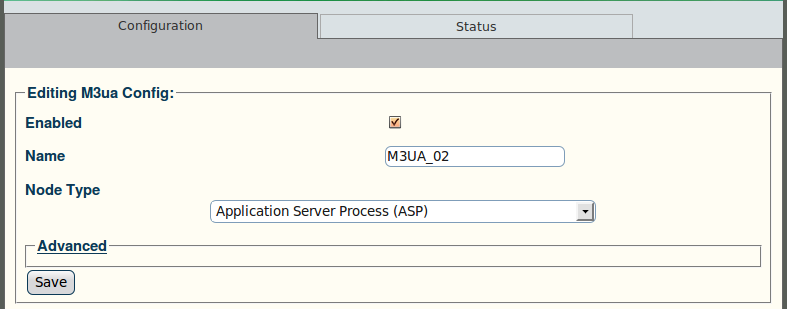

Web Portal v2.4 Creating ASP M3UA Configuration

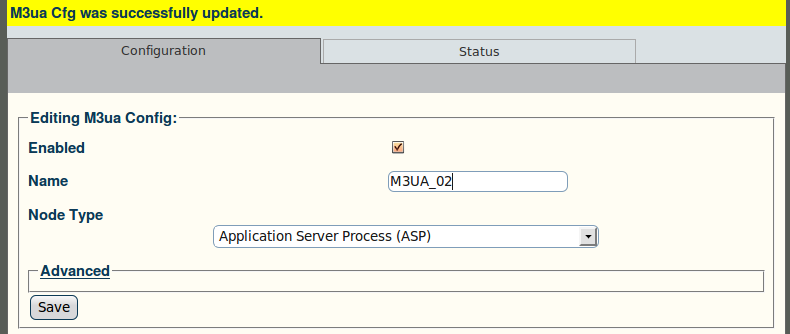

3. Verify that the "M3ua Cfg was successfully created" message appears:

Web Portal v2.4 ASP M3UA Configuration Created
