Create an M2UA SAP

To create an M2UA SAP:

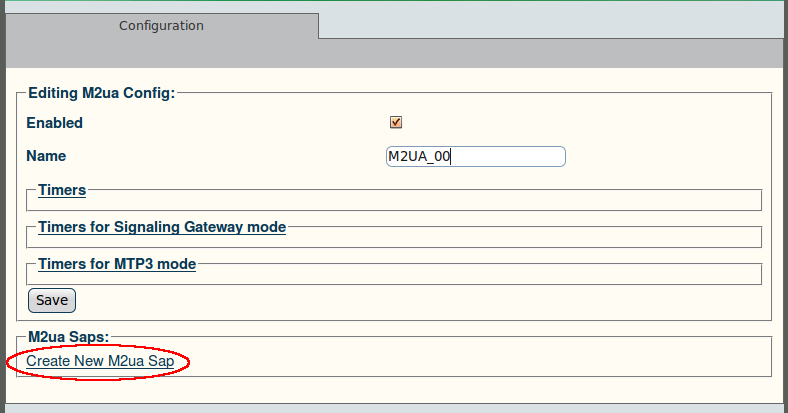

1. Click "Create New M2ua Sap" in the M2UA configuration window:

Web Portal v2.4 Create M2UA SAP

2. Configure the new M2UA SAP:

• Enter a name for the new SAP

• Enter a number for the SCTP source port

• Click "Create" to finalize the configuration

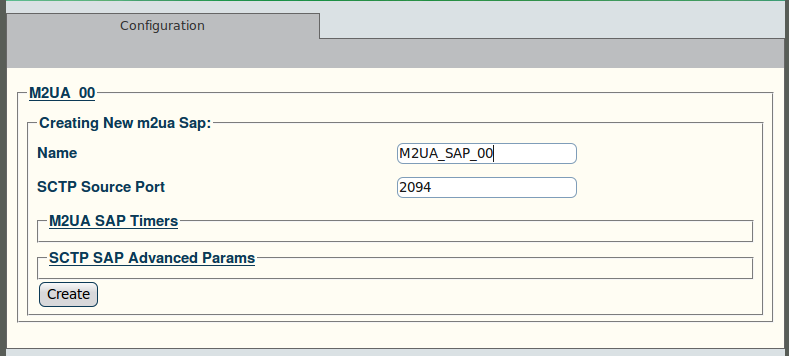

Web Portal v2.4 Creating M2UA SAP

3. Verify that the "M2ua Sap was successfully created" message appears:

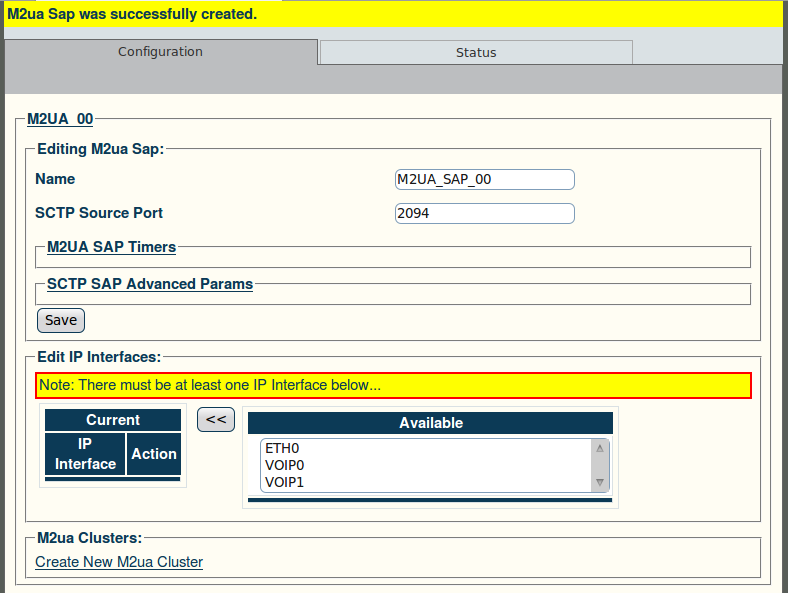

Web Portal v2.4 M2UA SAP Created

4. Associate an IP interface with the new SAP:

• Select an IP interface from the "Edit IP Interfaces" list

• Associate the interface with the SAP, using the "<<" button

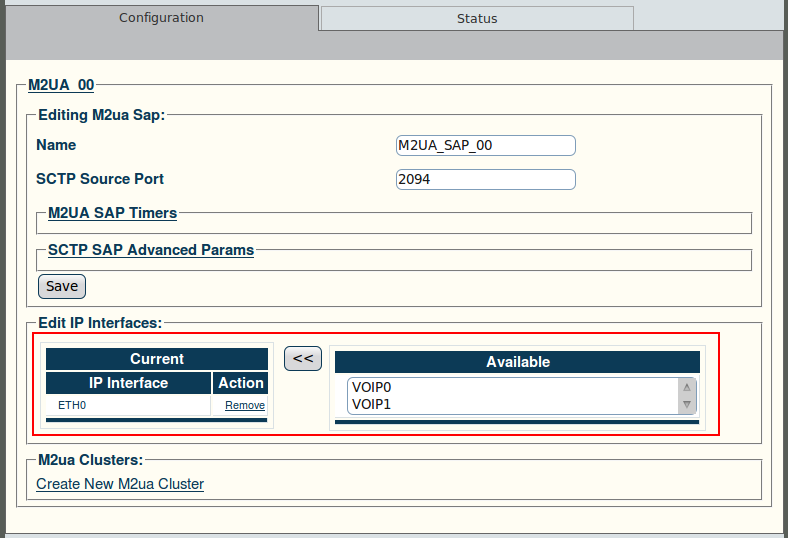

Web Portal v2.4 M2UA SAP IP
