Create a NAP
A Network Access Point (NAP) represents the entry point to another network or destination peer.
To create a network access point (NAP):

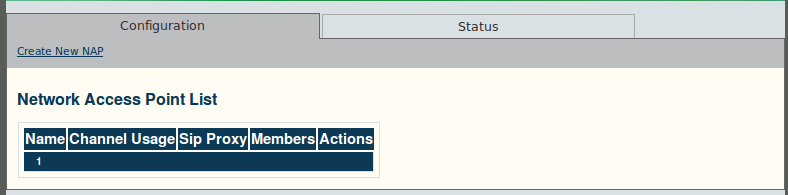

1. Click "NAP" in the navigation panel:
2. Click "Create New NAP" in the NAP information panel:

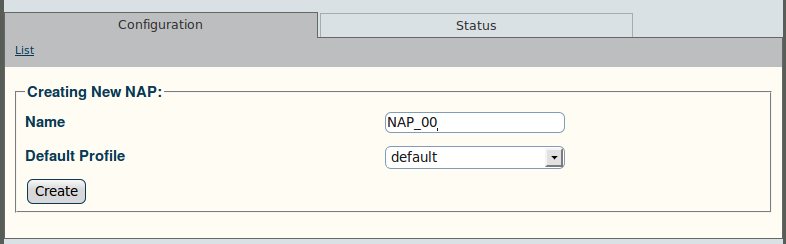

3. Configure the new NAP:
Enter a name for the NAP
Select a user-created profile, if not, select "default"
Click "Create" to finalize the configuration
4. Verify that the "NAP was successfully created" message appears:
5. Associate an ISUP interface with the NAP:
Select an interface
Click the "<<" button to add the interface to the list
The following screen is displayed:
Select a value for Channel Usage, to avoid call collision
Click "Save" to finalize the configuration

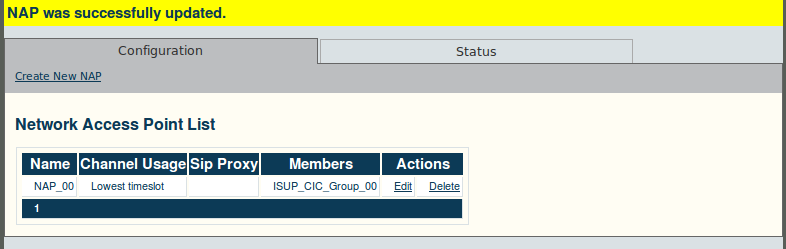

Verify that the "NAP was successfully update" message appears:
