Add M2PA Links

To create an M2PA link:

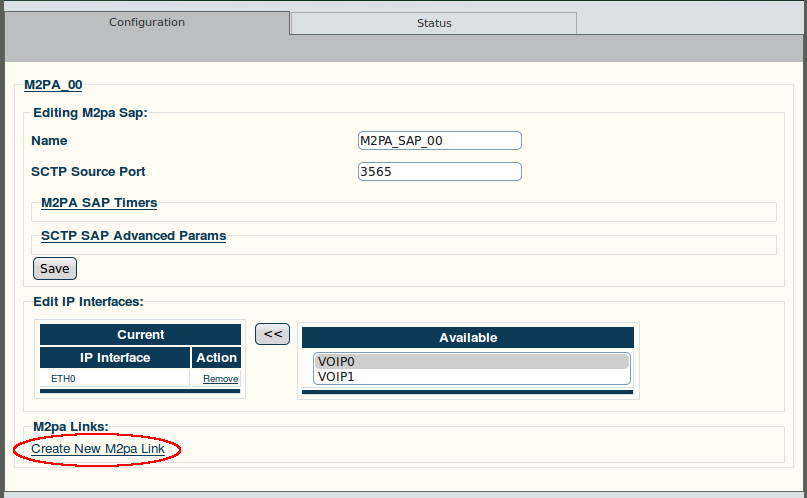

1. Click "Create new M2pa link" in the M2PA SAP configuration window:

Web Portal v2.4 Create M2PA Link

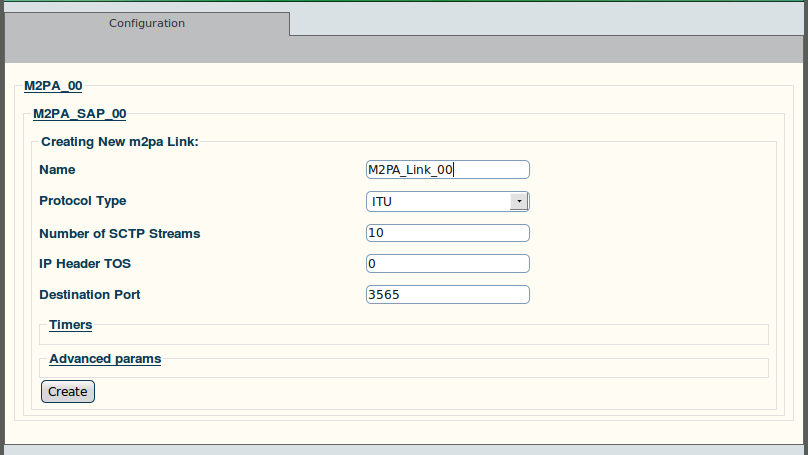

2. Configure the new link:

• Enter a name for the link

• Select a protocol type:

  • ITU

  • ANSI

  • TTC

• Set other features, as needed

  • Number of SCTP Streams:

  • IP Header TOS

  • Destination port (same value as the one configured on the destination side)

• Click "Create" to finalize the M2PA link

Web Portal v2.4 Creating M2PA Link

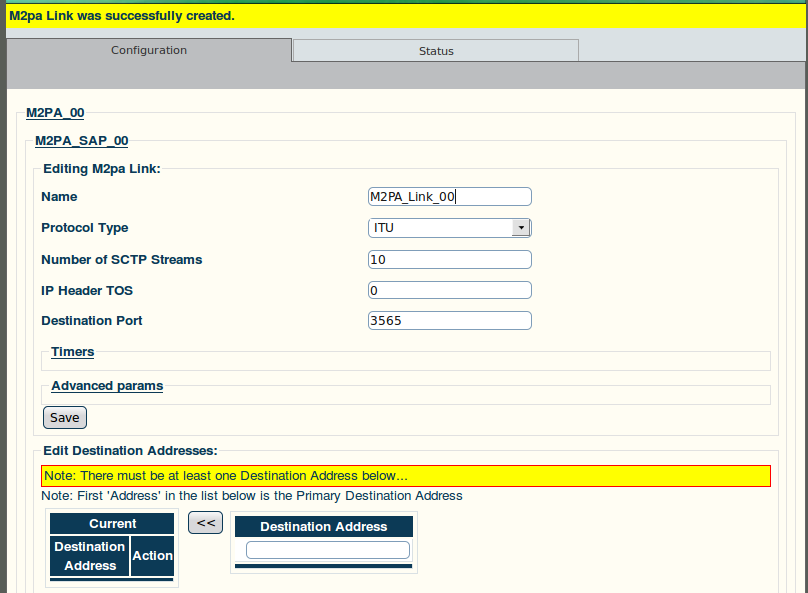

3. Verify that the "M2pa Link was successfully created" message is displayed:

Web Portal v2.4 M2PA Link Created

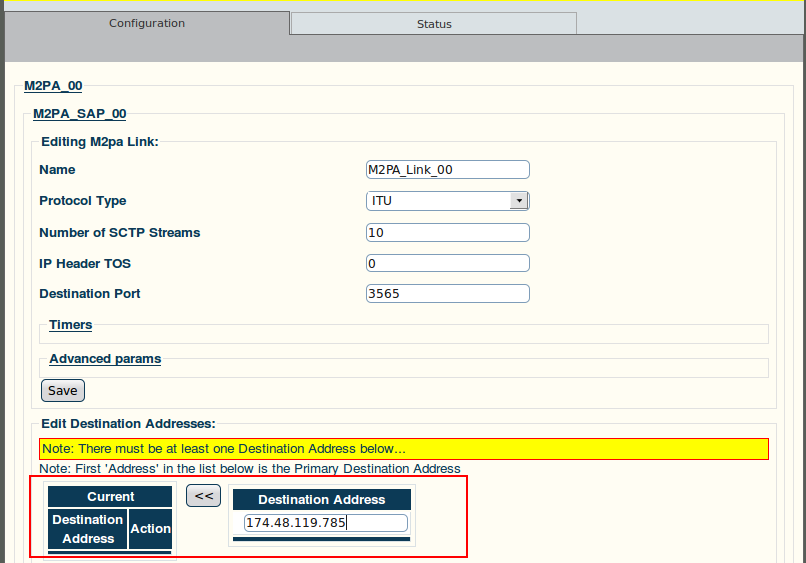

4. Enter a destination address in the appropriate box in the information panel:

• Click the "<<" button to add the destination address to the address list

Web Portal v2.4 M2PA Link Address

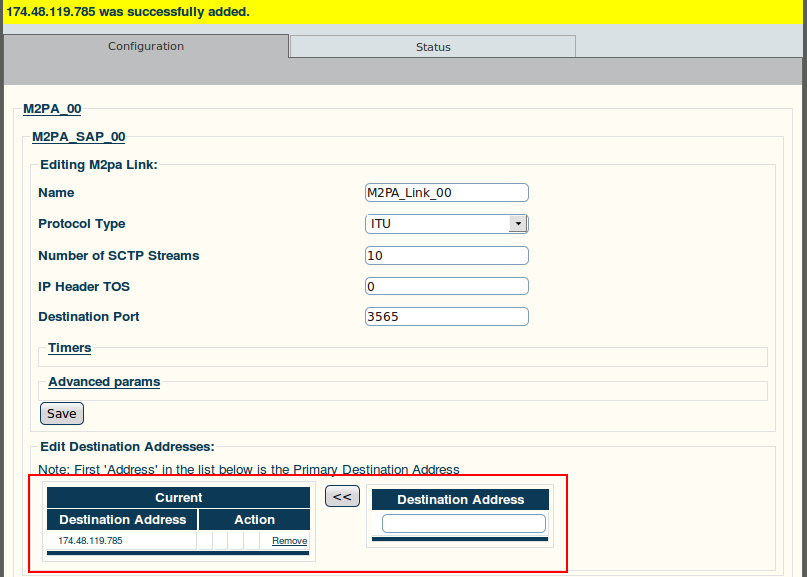

5. Verify that the address has been added to the list, and that the "(your address) was successfully added" message appears:

Web Portal v2.4 M2PA Link Address 2
