Verifying the Current Clocking Source

1. Select Clocking from the navigation panel.

Navigation Panel v2.3 Clocking

2. Verify the number and sources of clocking signals.

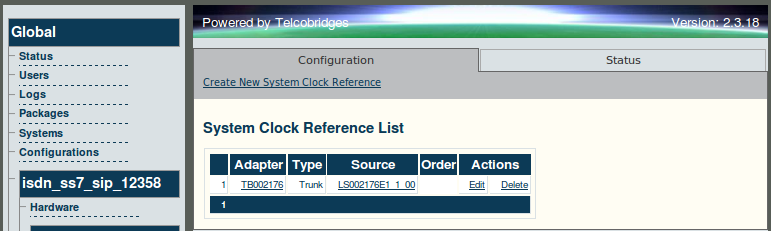

Web Portal v2.3 Clock List

In this example, an internal clocking source is being used as the sole clocking source for the Tmedia system. It is originating from the Tmedia hardware adapter, named TB002176.
